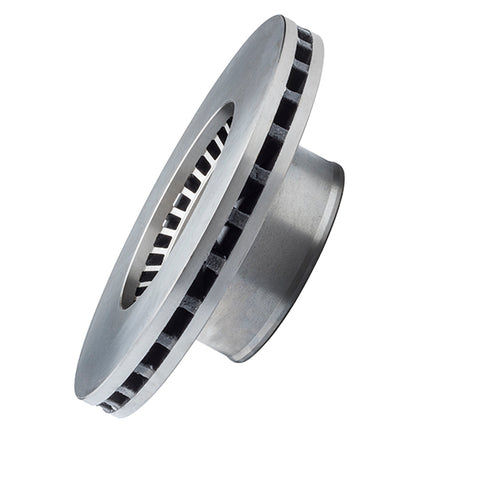

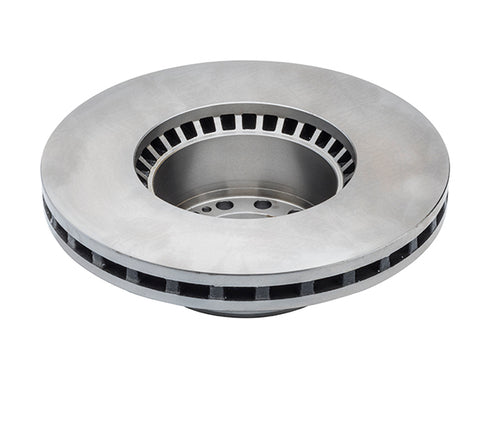

Haldex MPBR76621 Rotor Air Disc Brake Transit, Coach Hat Type

• Application: Transit, Motor Coach
• Rotor Type: Hat Type Rotor
• Number of Mounting Bolt Holes: 12
• Mounting Bolt Circle Diameter: 6.61"/167.89mm
• Mounting Bolt Thread Size: 0.75"
• Pilot Diameter: 5.15"/130.81mm
• ABS Tone Ring Style: No
• Overall Diameter: 17.1"/434mm
• Rotor Thickness New: 1.77"/44.96mm
• Minimum Rotor Thickness: 1.53"/39mm
• Overall Depth: 5.12"/130.05mm
• Brake System: Meritor
• Approximate Weight: 73 lbs./33 kg

Part number: MPBR76621
