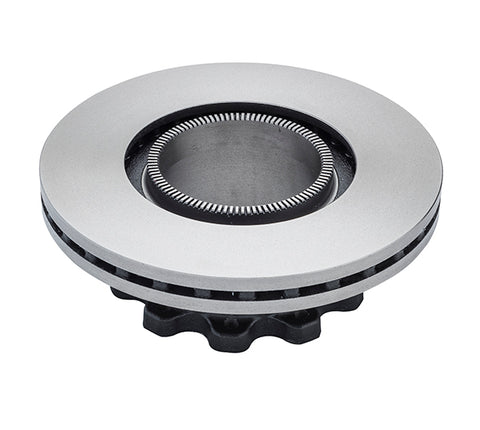

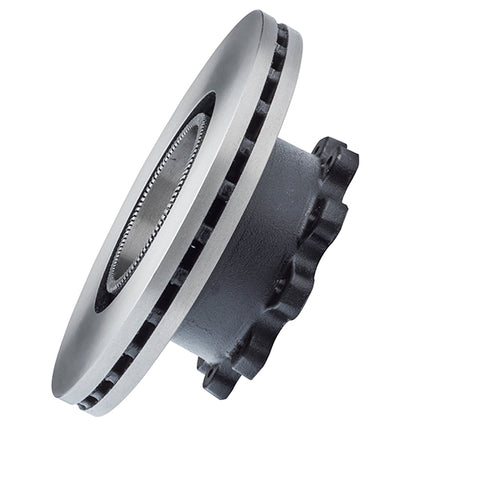

Haldex MPBR76619 Rotor Air Disc Brake Trailer U Type

• Application: Trailer
• Rotor Type: U
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 9.82" / 249.43 mm
• Mounting Bolt Thread Size: M16-2
• Pilot Diameter: 8.65" / 219.71 mm
• ABS Tone Ring Style: Cast-In
• Overall Diameter: 16.93" / 430 mm
• Rotor Thickness New: 1.77" / 44.96 mm
• Minimum Rotor Thickness: 1.50" / 38 mm
• Overall Depth: 5.91" / 150.11 mm
• Brake System: Wabco PAN 22
• Approximate Weight: 71 lbs. / 32 kg

Part number: MPBR76619
