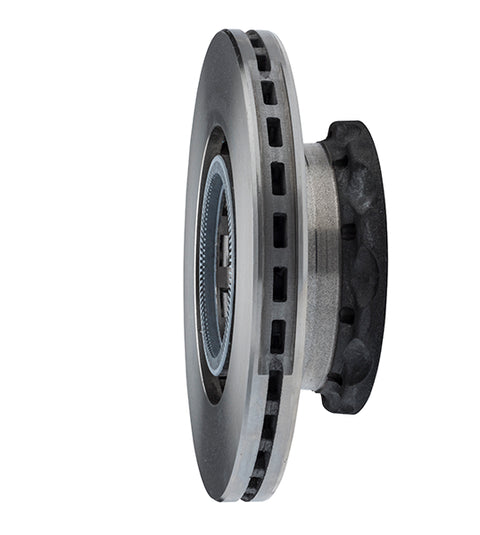

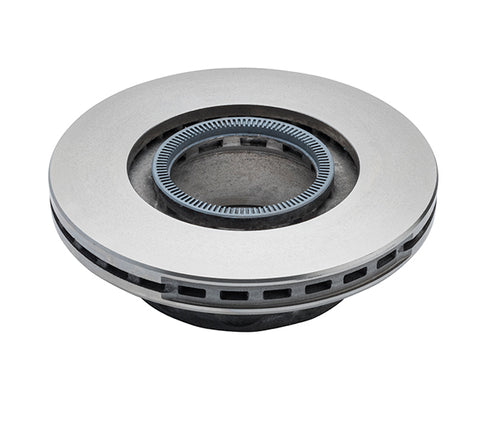

Haldex MPBR76610 Rotor Air Disc Brake Transit, Coach U Type

• Application: Transit, Motor Coach
• Rotor Type: U Type Rotor
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 9.25"/234.95mm
• Mounting Bolt Thread Size: M16-1.5
• Pilot Diameter: 7.99"/202.95mm
• ABS Tone Ring Style: Cast-In
• Overall Diameter: 16.93"/430mm
• Rotor Thickness New: 1.77"/44.96mm
• Minimum Rotor Thickness: 1.45"/37mm
• Overall Depth: 5.16"/131.06mm
• Brake System: Van Hool
• Approximate Weight: 81 lbs./37 kg

Part number: MPBR76610
