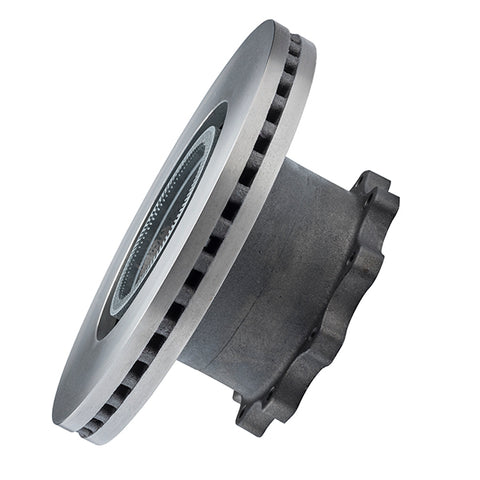

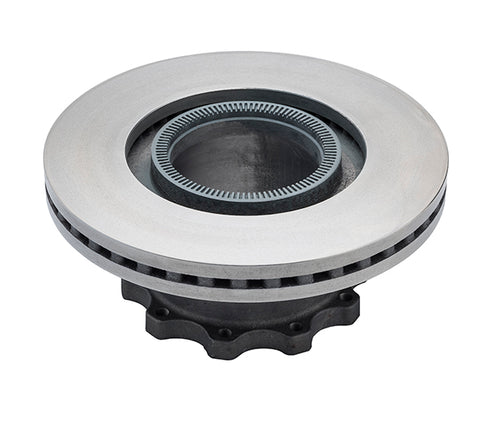

Haldex MPBR76604 Rotor Air Disc Brake Transit, Coach U Type

• Application: Transit, Motor Coach
• Rotor Type: U Type Rotor
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 9.84"/249.94mm
• Mounting Bolt Thread Size: 5/8"-18
• Pilot Diameter: 7.64"/194.06mm
• ABS Tone Ring Style: Cast-In
• Overall Diameter: 17.1"/434mm
• Rotor Thickness New: 1.77"/44.96mm
• Minimum Rotor Thickness: 1.45"/37mm
• Overall Depth: 7.08"/179.83mm
• Brake System: Knorr Bremse SB/SN7
• Approximate Weight: 99 lbs./45 kg

Part number: MPBR76604
