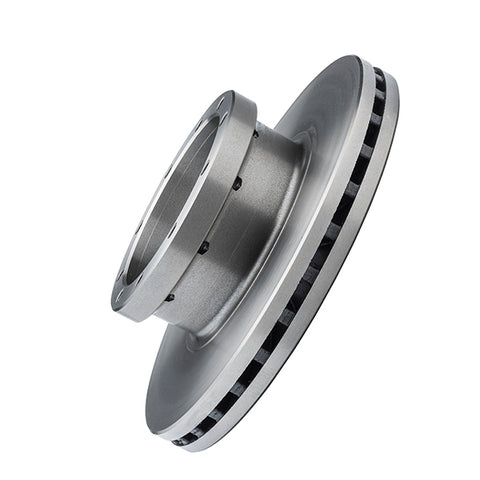

Haldex MPBR76603 Rotor Air Disc Brake Transit, Coach U Type

• Application: Transit, Motor Coach, Fire/Emergency
• Rotor Type: U Type Rotor
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 8.66"/219.96mm
• Mounting Bolt Thread Size: M16-1.5
• Pilot Diameter: 7.64"/194.06mm
• ABS Tone Ring Style: No
• Overall Diameter: 17.1"/434mm
• Rotor Thickness New: 1.77"/44.96mm
• Minimum Rotor Thickness: 1.45"/37mm
• Overall Depth: 5.35"/135.89mm
• Brake System: Knorr Bremse SB/SN7
• Approximate Weight: 81 lbs./37 kg

Part number: MPBR76603
