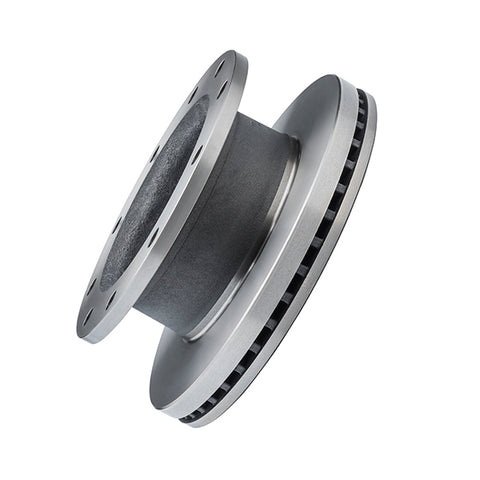

Haldex MPBR74601 Rotor Air Disc Brake Trailer U Type

• Application: Truck
• Rotor Type: U
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 11.25" / 285.75 mm
• Pilot Diameter: 8.76" / 222.50 mm
• ABS Tone Ring Style: No
• Overall Diameter: 15.24" / 387 mm
• Rotor Thickness New: 1.75" / 44.45 mm
• Minimum Rotor Thickness: 1.63" / 41 mm
• Overall Depth: 6.12" / 155.45 mm
• Brake System: Meritor ADB-1560
• Approximate Weight: 65 lbs.

Part number: MPBR74601
