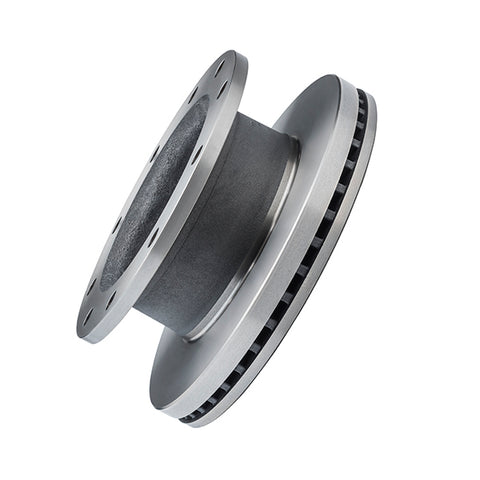

Haldex MPBR73601 Rotor Air Disc Brake Truck U Type

• Application: Truck
• Rotor Type: U
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 11.25" / 285.75 mm
• Mounting Bolt Thread Size: 0.81"
• Pilot Diameter: 9.45" / 240.03 mm
• ABS Tone Ring Style: No
• Overall Diameter: 15.24" / 387 mm
• Rotor Thickness New: 1.75" / 44.45 mm
• Minimum Rotor Thickness: 1.63" / 41 mm
• Overall Depth: 5.77" / 146.56 mm
• Brake System: Meritor ADB-1560
• Approximate Weight: 66 lbs. / 30 kg

Part number: MPBR73601
