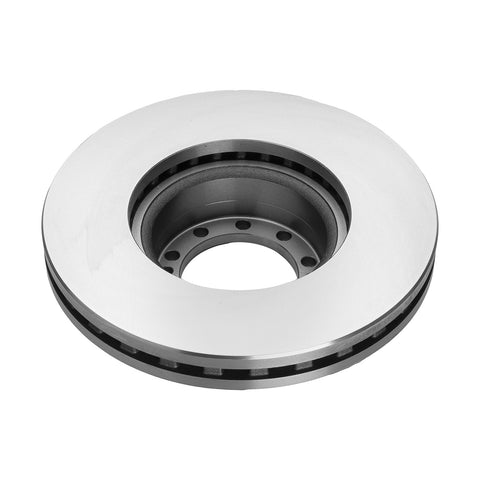

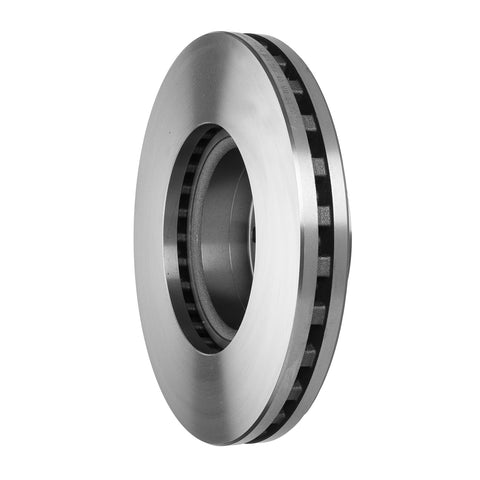

Haldex MPBR71604 Rotor Air Disc Brake Truck Hat Type

• Application: Truck
• Rotor Type: Hat
• Number of Mounting Bolt Holes: 10+2
• Mounting Bolt Circle Diameter: 5.67" / 144.02 mm
• Pilot Diameter: 4.61" / 117.09 mm
• ABS Tone Ring Style: No
• Overall Diameter: 14.76" / 375 mm
• Rotor Thickness New: 1.77" / 44.96 mm
• Minimum Rotor Thickness: 1.57" / 40 mm
• Overall Depth: 3.90" / 99.06 mm
• Brake System: Wabco PAN 19-1
• Approximate Weight: 52 lbs. / 23.59 kg

Part number: MPBR71604
