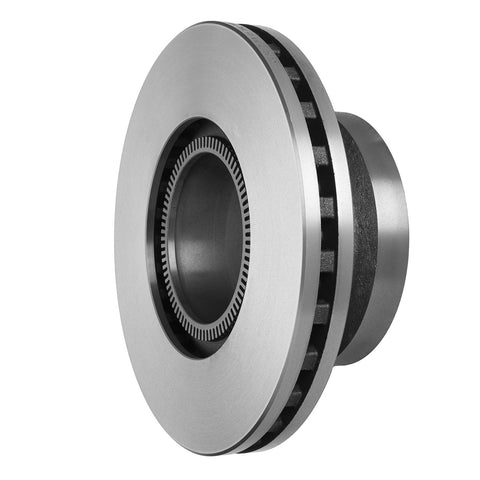

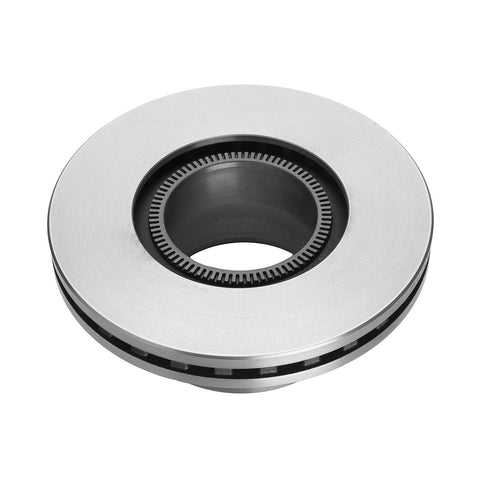

Haldex MPBR71603 Rotor Air Disc Brake Truck U Type

• Application: Truck
• Rotor Type: U
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 8.23" / 209.04 mm
• Pilot Diameter: 7.05" / 179.07 mm
• ABS Tone Ring Style: Cast-In
• Overall Diameter: 14.76" / 375 mm
• Rotor Thickness New: 1.77" / 44.96 mm
• Minimum Rotor Thickness: 1.57" / 40 mm
• Overall Depth: 5.75" / 146.05 mm
• Brake System: Wabco PAN 19-1
• Approximate Weight: 63 lbs. / 28.58 kg

Part number: MPBR71603
