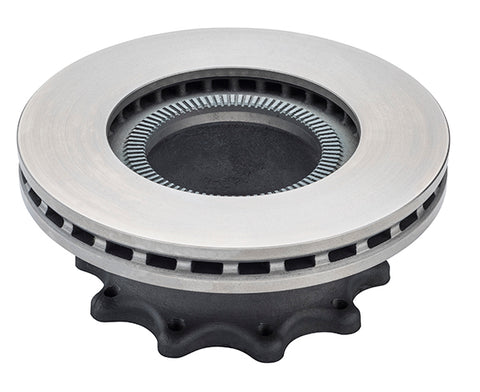

Haldex MPBR71601 Rotor Air Disc Brake Trailer U Type

• Application: Trailer
• Rotor Type: U
• Number of Mounting Bolt Holes: 10
• Mounting Bolt Circle Diameter: 9.82" / 249.43 mm
• Mounting Bolt Thread Size: M16-2
• Pilot Diameter: 8.66" / 219.96 mm
• ABS Tone Ring Style: Cast-In
• Overall Diameter: 14.84" / 377 mm
• Rotor Thickness New: 1.77" / 44.96 mm
• Minimum Rotor Thickness: 1.53" / 39 mm
• Overall Depth: 5.91" / 150.11 mm
• Brake System: Wabco Pan 19
• Approximate Weight: 61 lbs. / 28 kg

Part number: MPBR71601
