Haldex LCP3030S6CW Lifeseal+ Combination Spring Brakes

3030
LifeSeal+
Stroke 2.5"
Center-line of clevis pin 2.87"
Heavy duty housing
High output power spring
Welded clevis

• Actuator Type Size: 3030
• Stroke Type: Standard
• Available Stroke: 2.5"
• Pushrod Threads: N/A
• Weight: 21.7 lbs

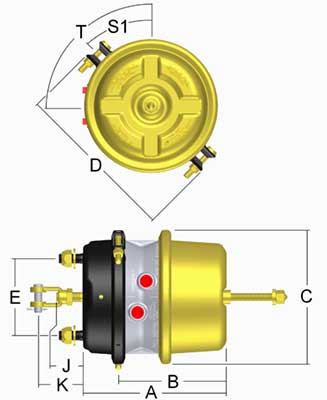

• A - Length from mounting bracket to end of Spring Housing: 8.95"
• B - Length of Piggyback: 6.42"
• C - Dimension at rolled Spring Housing flange: 8.19"
• D - Dimension at Service Clampband: 10.18"
• E - Stud Spacing: 4.75"
• J - Pushrod Length from face of Service Housing: N/A
• K - Distance to Clevis Pin centerline from face of Service Housing: 2.87"
• S1 - Service Clampband position: 0°
• T - Air Port position: 0°

Part number: LCP3030S6CW
