Haldex LCP3030R Lifeseal+ Combination Spring Brakes

3030
LifeSeal+
Stroke 2.5"
Pushrod 14.00"
Heavy duty housing
Standard power spring
Threaded no clevis

• Actuator Type Size: 3030
• Stroke Type: Standard
• Available Stroke: 2.5"
• Pushrod Threads: 5/8"
• Weight: 22.2 lbs

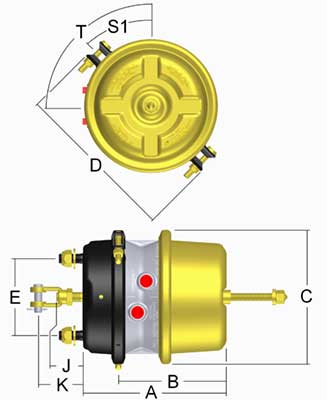

• A - Length from mounting bracket to end of Spring Housing: 8.95"
• B - Length of Piggyback: 6.42"
• C - Dimension at rolled Spring Housing flange: 8.19"
• D - Dimension at Service Clampband: 10.18"
• E - Stud Spacing: 4.75"
• J - Pushrod Length from face of Service Housing: 14.00"
• K - Distance to Clevis Pin centerline from face of Service Housing: N/A
• S1 - Service Clampband position: 0°
• T - Air Port position: 90°

Part number: LCP3030R
