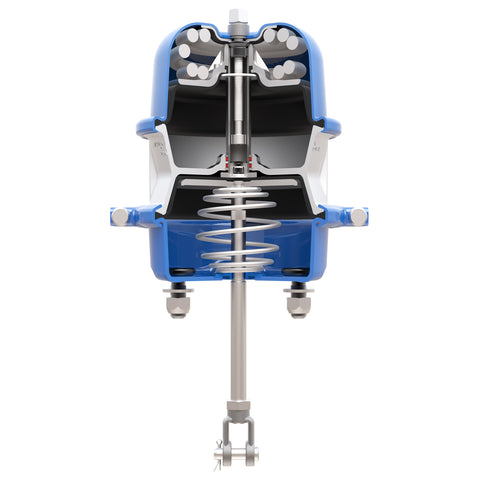

Haldex LCP3030L Lifeseal+ Combination Spring Brakes

3030 LifeSeal+
Stroke 3.0"
Pushrod 10.00"
Heavy duty housing
Standard power spring
Threaded with clevis

• Actuator Type Size: 3030
• Stroke Type: Long
• Available Stroke: 3.0"
• Pushrod Threads: 5/8"
• Weight: 23.6 LBS
• A - Length from mounting bracket to end of Spring Housing: 9.72"
• B - Length of Piggyback: 7.19"
• C - Dimension at rolled Spring Housing flange: 8.19"
• D - Dimension at Service Clampband: 10.18"
• E - Stud Spacing: 4.75"
• J - Pushrod Length from face of Service Housing: 10.00"
• K - Distance to Clevis Pin centerline from face of Service Housing: N/A
• S1 - Service Clampband position: 0°
• T - Air Port position: 90°

Part number: LCP3030L
