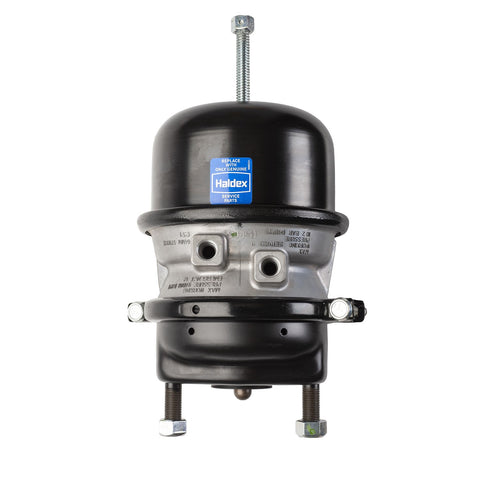

Haldex LCP2430 Lifeseal+ Combination Spring Brakes

2430 LifeSeal+
Stroke 2.5"
Pushrod length 10.00"
Standard housing
Standard spring
Threaded clevis

• Actuator Type Size: 2430
• Stroke Type: Standard
• Available Stroke: 2.5"
• Pushrod Threads: 5/8"
• Weight: 22.0 lbs

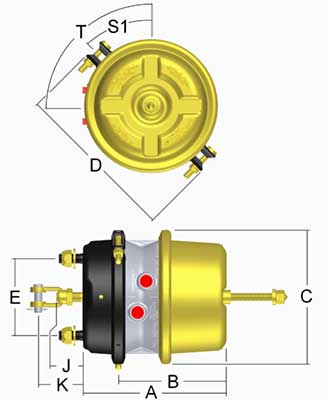

• A - Length from mounting bracket to end of Spring Housing: 8.78"
• B - Length of Piggyback: 6.42"
• C - Dimension at rolled Spring Housing flange: 8.19"
• D - Dimension at Service Clampband: 9.41"
• E - Stud Spacing: 4.75"
• J - Pushrod Length from face of Service Housing: 10.00"
• K - Distance to Clevis Pin centerline from face of Service Housing: N/A
• S1 - Service Clampband position: 0°
• T - Air Port position: 90°

Part number: LCP2430
