Haldex KN28520X Relay Valve, Remanufactured

Reman. RG2 Relay Valve
A fast relay used to apply and release service brakes on tractor or trailer.
Cracking pressure: 5.5 +/- 1.0 PSI.
Compact size.
Control Port 1/4".
Two port delivery.
Two mounting holes, .34 diameter on 1.50" centers.
Cover may be rotated without affecting warranty or performance.
Control position is in relationship to delivery ports.
Approximate Weight: 1.5 lbs.

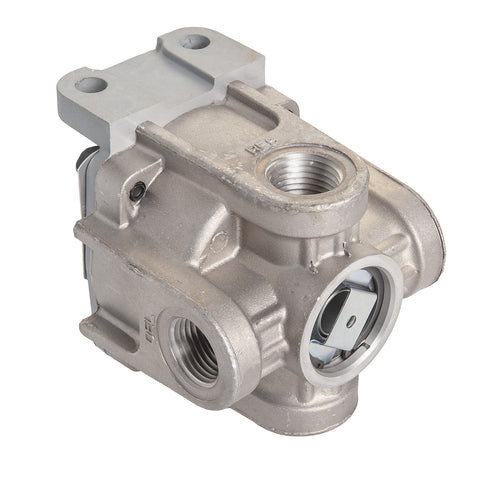

Picture illustrates 90° control port position. 0° would locate port in line with delivery port "D".
Notes
Available CoreFree„¢, order KN28520RX.
Repair Kit use part number RN10HM.

• Supply A: 1/2"
• Supply B: 1/2"
• Delivery C: 1/2"
• Delivery D: 1/2"
• Control Position: 90°
• Plugs Included: 1 @ 1/2"
• OEM Part Number: N30108BF
• Core Group: 225
• Width: 3-1/2"
• Length: 3-1/2"
• Height: 3-5/8"
• Contol Port: 1/4"
• Cracking Pressure: 5.6 ± 1.0 PSI
• Mounting Holes (2): .34" diameter on 1.50" centers
• Approximate Weight: 1.5 lbs.

Part number: KN28520X
