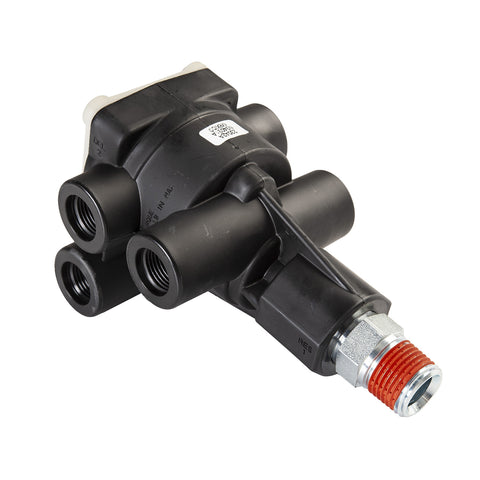

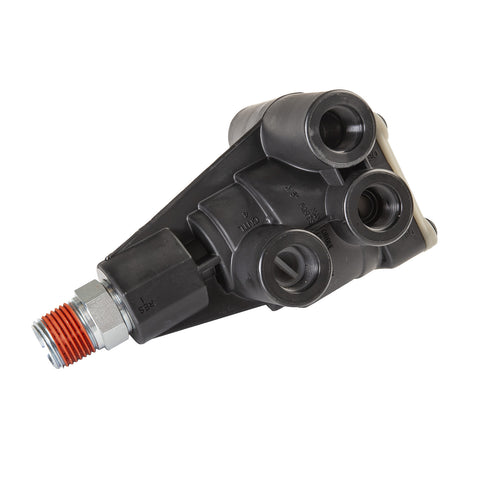

Haldex KN26120 Trailer Valve

New Trailer Brake Control (TBC) Valve
Made of Engineering Grade Composite (EGC)
Light weight and capable of withstanding high impact
Resistant to corrosion and chemicals
Integral anti-compounding
Exhaust cover keeps road dirt and grime out
Inlet filters to eliminate system contamination and promote long service life
Notes
Internal pressure protection and check functions isolate reservior failures to prevent automatic application of the trailer spring brakes.
Spring Brake Priority applications do not require the tank to be filled prior to the spring brakes being released.
Spring Brake Priority identified by White Cover.

• OEM Part Number: N34031A
• Supply Port: 3/8"
• Control Port: 3/8"
• Reservior Port: 1/2"
• Delivery Ports (4): 3/8"
• Notes: Spring Brake Priority (White Cover)

Part number: KN26120
