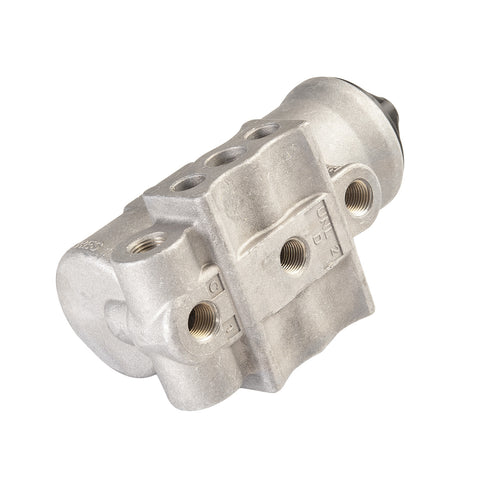

Haldex KN18530 Governor

Piston Type Governor
Operates in conjunction with the compressor unloading mechanism.
Automatically controls the air pressure in the air supply system between the desired predetermined maximum and minimum pressures.
Direct compressor or remote mount.
1/8-27 NPT ports. (Unless Noted)
.336 diameter mounting holes.
Approximate weight 1 lb. 1 oz.
Notes
Service Kit use part number RN32W.

• Cut-In Pressure: 105 PSI Nominal
• Cut-Out Pressure: 130 PSI Nominal
• Adjustable: Yes
• OEM Part Number: N30190A
• Port Thread Size: 1/8-27 NPT (Unless Noted)
• Mounting Holes: .336 diameter
• Approximate Weight: 1 lb.

Part number: KN18530
