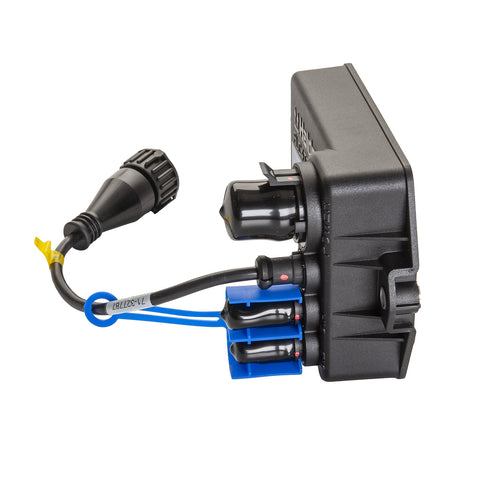

Haldex AL919338 Electronic Control Unit

PLC Select 1M ECU
Wheel-speed Sensor and Trailer Power connects directly to ECU - no intermediate cables required
Single fastener design assures easy serviceability
Potted ECU Enclosure provides excellent protection from the environment
PLC Select 1M supports all 2S/1M applications
Replaces AL919323
Notes
PLC Select 1M Kits are available to upgrade earlier generation ECU platforms.
Post October 09 SKU# incorporates DIN style Solenoid Cable.

• ECU Specifications: DIN 12V, SLH-A7
• Dimensions: 4-1/4" Height x 5-1/2" Width
• Application: Multi-Axle, (Non-Steer Axles)
• OEM Part Number: 201200BA
• PLC Select 1M: 2S/1M ECU

Part number: AL919338
