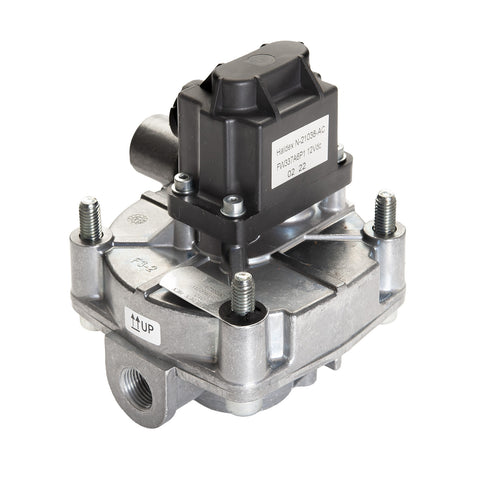

Haldex AL364045 Abs Valve

2-Port 12 Volt ABS Relay Valve (Frame Mount)
Production part number is embossed on metal tag.
Notes
Frame mount valve may be used in both applications by re-positioning cover.
ECU and bracket may need to be transferred from existing valve.

• Valve Specifications: 2-Port, 1/2" Frame Mount, 12V, 3/8" Ports
• OEM Part Number: 364140111
• Delivery Port: 3/8" (2)
• Service Brake Delivery Ports: 2-Port ABS Relay Valve
• Voltage: 12V
• Reservoir Port (1): 1/2"
• Crack Pressure: 4.0 Crack Pressure
• Control Port: 3/8"

Part number: AL364045
