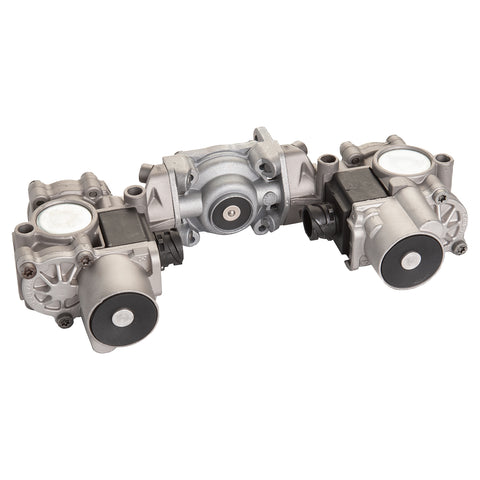

Haldex 4725003200X Meritor/Wabco Style Abs Valve Pack, Remanufactured

Reman. Front Axle Valve Pack
Combines two ABS modulator valves and one quick release valve
Usually attached to a frame cross-member
Compatible with C, D and E versions of Meritor/WABCO ECUs
12 Volt
1/2" - 14 NPT Modulator Valve Ports
Truck/Tractor Application
Notes
Use the following converter cables to switch connector styles:
Screw to Bayonet (8946011322K)
Bayonet to Screw (8946011332K)
4725003000X Shown

• Crack Pressure: 1 PSI
• Connector Type: Bayonet
• Voltage: 12
• Modulator Valve Ports: 1/2" - 14 NPT
• System Configuration: Various
• Valve Package Contains: (1) 4721950760XModulator Valve-Left, (1) 4721950770X Modulator Valve-Right, (1) 9735001040X Quick Release Valve 1 psi
• Application: Truck/Tractor/Bus
• Core Group: ABS13

Part number: 4725003200X
