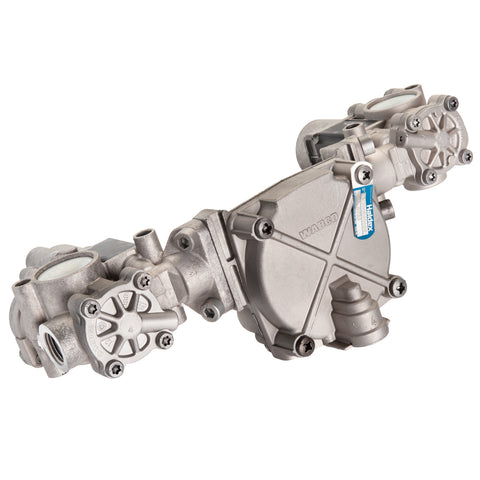

Haldex 4725001010X Meritor Wabco Style Abs Valve Pack, Remanufactured

Reman. Rear Axle Valve Pack
Combines two ABS modulator valves and one service brake relay valve
Usually attached to a frame cross-member
Compatible with C-, D- and E-versions of Meritor WABCO Style ECUs
For a tandem drive axle, both wheels on the same side are typically controlled by the same valve
12 Volt
1/2" - 14 NPT Modulator Valve Ports
Truck/Tractor Application
Notes
Use the following converter cables to switch connector styles:
Screw to Bayonet (8946011322K)
Bayonet to Screw (8946011332K)

• Crack Pressure: 5.5 PSI
• System Configuration: 4S/4M
• Valve Package Contains: (1) 4721950800X Modulator Valve-Left, (1) 4721950810X Modulator Valve-Right, (1) 9730110220X Relay Valve 5.5 psi
• Connector Type: Screw In
• Core Group: ABS5
• Voltage: 12
• Modulator Valve Ports: 1/2" - 14 NPT
• Application: Rear Axle ABS Valve Packs
  Truck/Tractor/Bus

Part number: 4725001010X
