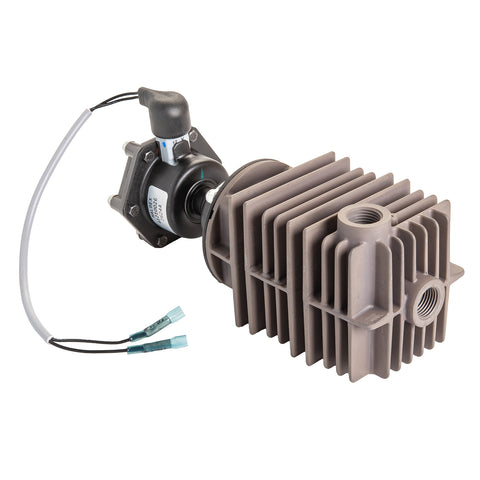

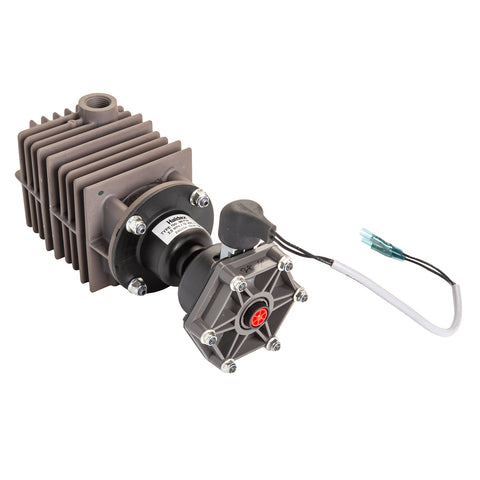

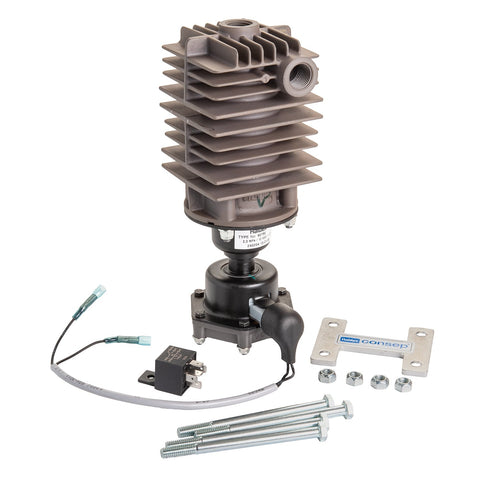

Haldex 41210026 Consep„¢ Condenser/Separator

Consep„¢ Condenser/Separator
Removes oil, liquid and other contaminates prior to passage through the air system.
Purges contaminants with each brake application.
Reduces corrosion and possible failure of air system components caused by contamination.
Substantially increases air dryer desiccant life expectancy.
Includes Haldex Automatic Drain Valve.
Notes
Approximate Weight: 4.25 lbs.
Height: 10"
Width: 4.4"
Drain Capacity: 1.3cc/purge @ 116 psi
Mounting Position: Vertical
Maximum Operating Pressure: 290 PSI
Inlet Temperature: -40 to 175 degress F
Port Sizes: 1/2" - 14 NPTF
Rate Voltage & Power Consumption: 12 Volt/1 AMP

• Heater Type: 12 Volt
• Weight: 4.25 lbs.
• Height: 10"
• Width: 4.4"
• Drain Capacity: 1.3cc/purge @ 116 psi
• Mounting Position: Vertical
• Maximum Operating Pressure: 290 PSI
• Inlet Temperature: -40°F to 175°F
• Outlet Port: 1/2" - 14 NPTF
• Rate Voltage & Power Consumption: 12 Volt/1 AMP

Part number: 41210026
