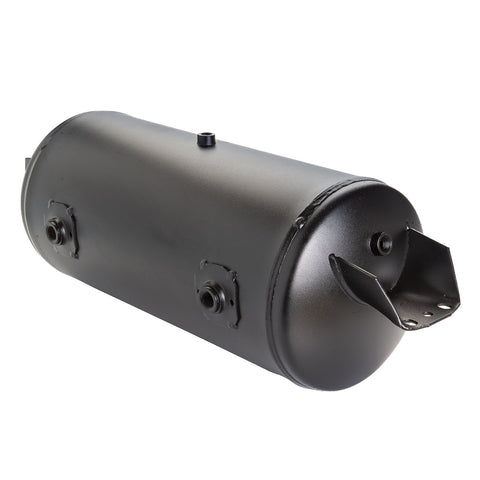

Haldex 19842 Reservoir

Saddle-Mounted Single Compartment Tank Reservoir
Long life internal and external corrosion protection.
Withstands 500 hour salt spray test.
Valve ports reinforced for extra strength.
Conforms to SAEJ10B specifications.
Certified to 150 PSI working pressure.
Use of isolator pads recommended in any ABS application.
Notes
All tanks have 1/4 inch drain port in bottom.
All tanks have two 3/8 inch charging ports, one on each end.
* Valve ports on same side.

• Mounting Centers: 27-1/2"
• Diameter: 9-1/2"
• Volume: 1490 cu. in.
• Valve Mounting Ports: (2) 1/2" , * see notes
• Mounting Flanges: Below Center Line

Part number: 19842
