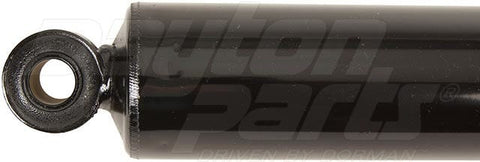

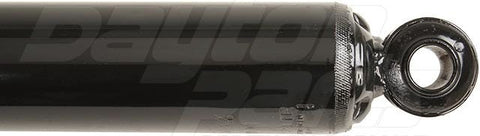

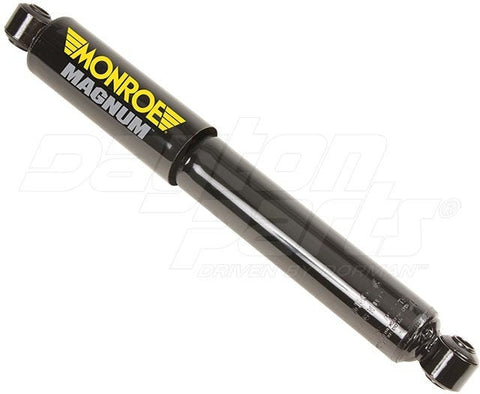

Dayton Parts M65503 Heavy Duty Shock Absorber

Shock Absorber

• Adjustable Compression: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body Color: Black
• Body Diameter: 2.36 in
• Body Material: Steel
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Black
• Compressed Length: 14.21 in
• Dust Shield Included: Yes
• Dust Shield Material: Metal
• Extended Length: 22.24 in
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Commercial
• Hydraulic Lockout: Yes
• Includes Bump Stop: No
• Internal Rebound Bumper: No
• Internal Rebound Spring: No
• Lower Mount Type: Loop Bushing and Sleeve Mount
• Mounting Code-Lower: LS54
• Mounting Code-Upper: LS54
• Mounting Hardware Included: No
• Package Contents: 1 Shock Absorber
• Packaging Type: Box
• Part Number: M65503
• Part Type: Suspension - Shock Absorber
• Rebound Control: No
• Remote Reservoir: No
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Shaft Material: Steel
• Shock Absorber Body End Measuring Point: Center Of Loop
• Shock Absorber Rod End Measuring Point: Center Of Loop
• Shock Stroke: 8.03 in
• Strut Mount Insulator(s) Included: No
• Travel Length: 8.03 in
• Type: Telescopic
• Upper Mount Type: Loop Bushing and Sleeve Mount
• Weight: 8.730000

• Part number: M65503
• Cross Reference: VMRS : 016003016; OTHER : 2024477, 65503, 85919, A3280M9711, A-3280-M-9711, A7805L1000, A-7805-L-1000, D65503, M85919
• Product Class: Suspension - Shock Absorber
