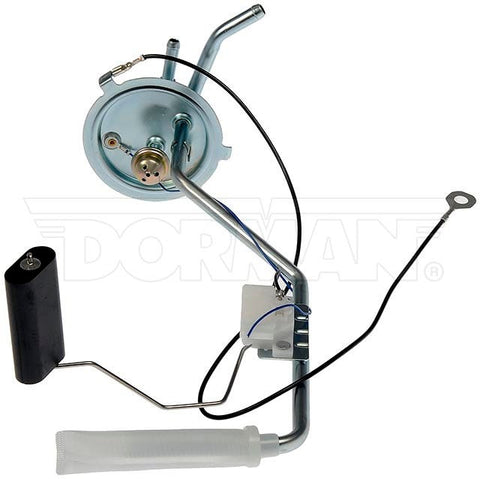

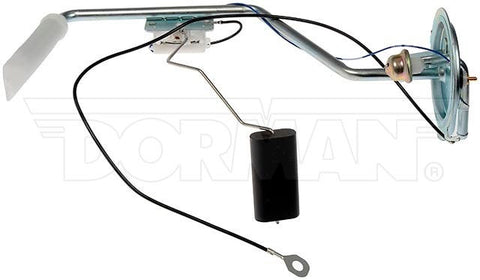

Dayton Parts 692-265 Fuel Sending Unit Without Pump

Fuel Sending Unit

• Adjustable Float Level: Yes
• Connector Quantity: 0
• Fuel Pump Included: No
• Gasket Or Seal Included: Yes
• Inlet Attachment Type: Hose Barb
• Inlet Diameter: 5.5 mm
• Inlet Fitting Thread Size: No Thread
• Inlet Quantity: 1
• Length: 310 mm
• Lock Ring Included: Yes
• Ohms Empty: 0 Ohms
• Ohms Full: 90 Ohms
• Outlet Attachment Type: Hose Barb
• Outlet Diameter: 6.8 mm
• Outlet Fitting Thread Size: No Thread
• Outlet Quantity: 1
• Outside Diameter: 91.3 mm

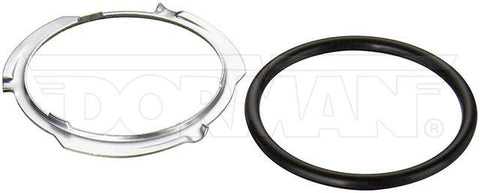

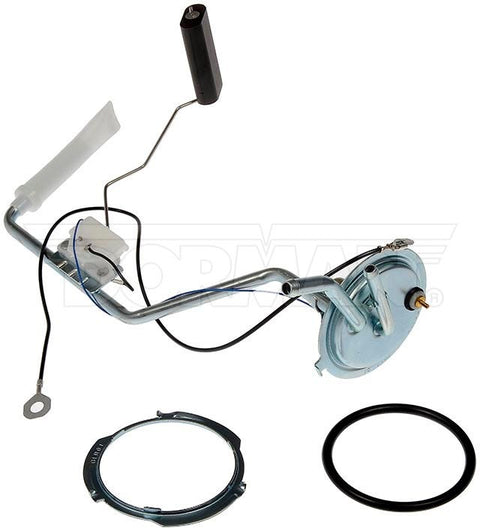

• Package Contents: 1 Sending Unit; 1 Lock Ring; 1 Gasket
• Packaging Type: Box
• Part Number: 692-265
• Part Type: Fuel Tank Sending Unit
• Pump Included: No
• Resistance Ohms Empty: 0 Ohms
• Resistance Ohms Full: 90 Ohms
• Selling Package Quantity: 1
• Strainer Included: Yes
• Tank Seal Outside Diameter: 92 mm
• Terminal Quantity: 0
• Vent Quantity: 0
• Weight: 1.300000
• Wire Colors: Black; Blue
• Wire Gauge Measurement: 16 ga.; 20 ga.
• Wire Quantity: 2
• Wiring Harness Included: No

Application Summary : Chevrolet P20 1989-82, Chevrolet P30 1989-82, GMC P2500 1989, 1987-82, GMC P3500 1989-82

• Part number: 692-265
• Cross Reference: VMRS : 044001100; GENERAL MOTORS : 25003279; OTHER : FG12P
• Product Class: Fuel Tank Sending Unit
