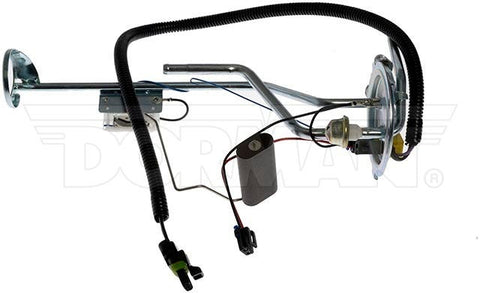

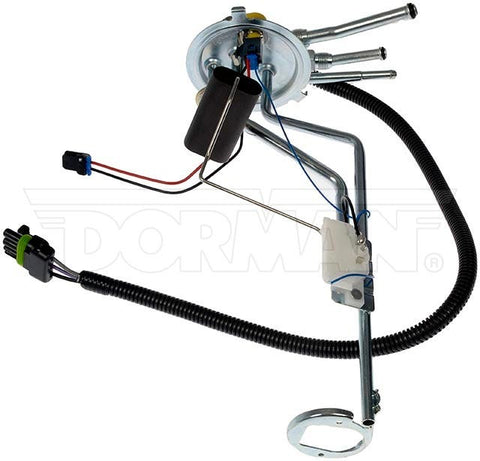

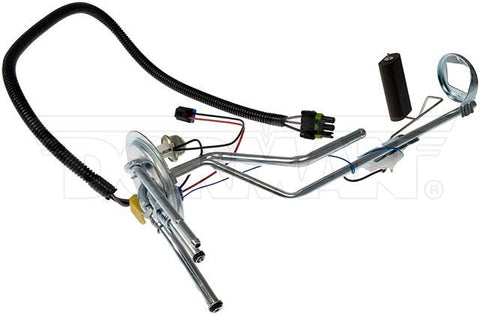

Dayton Parts 692-256 Fuel Sending Unit

Fuel Sending Unit

• Adjustable Float Level: Yes
• Connector Color: Black
• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Oval
• Fuel Pump Included: No
• Gasket Or Seal Included: Yes
• Inlet Attachment Type: Threaded
• Inlet Diameter: 4.7 mm
• Inlet Fitting Thread Size: 5/8-18
• Inlet Quantity: 1
• Length: 300 mm
• Lock Ring Included: Yes
• Ohms Empty: 0 Ohms
• Ohms Full: 90 Ohms
• Outlet Attachment Type: Male Threads
• Outlet Diameter: 4.8 mm
• Outlet Quantity: 1
• Outside Diameter: 91.3 mm

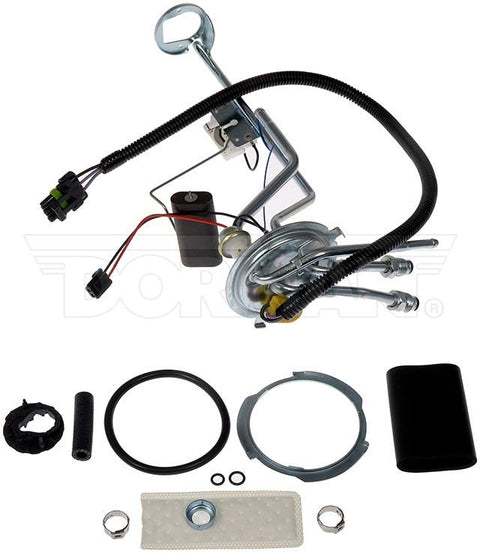

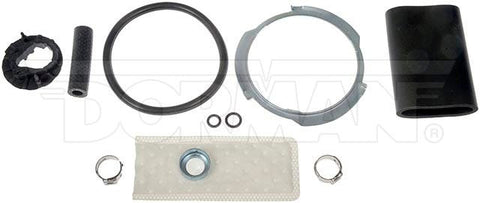

• Package Contents: 1 Sending Unit; 1 Lock Ring; 1 Gasket
• Packaging Type: Box
• Part Number: 692-256
• Part Type: Fuel Tank Sending Unit
• Plug/Connector Type: Female
• Pump Included: No
• Resistance Ohms Empty: 0 Ohms
• Resistance Ohms Full: 90 Ohms
• Selling Package Quantity: 1
• Strainer Included: Yes
• Tank Seal Outside Diameter: 92 mm
• Terminal Quantity: 3
• Terminal Type: Pin
• Vent Quantity: 0
• Weight: 1.600000
• Wire Colors: Black; Red; Blue; Gray; Purple
• Wire Gauge Measurement: 16 ga.; 20 ga.
• Wire Quantity: 7
• Wiring Harness Included: Yes
• Wiring Harness Length: 700 mm

Application Summary : Chevrolet P30 1997-94, GMC P3500 1997, 1995-94

• Part number: 692-256
• Cross Reference: VMRS : 044001100; GENERAL MOTORS : 25028268; OTHER : FG12X
• Product Class: Fuel Tank Sending Unit
