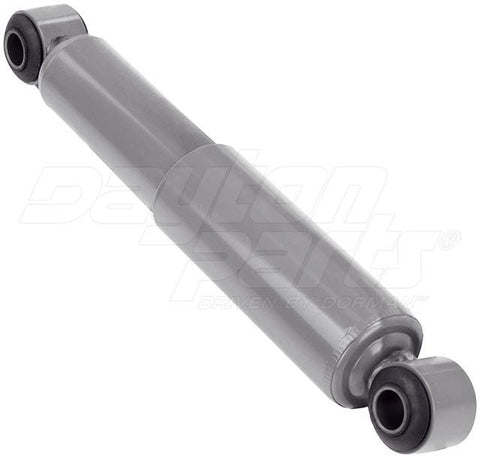

Dayton Parts 441-85939 Suspension - Shock Absorber

Hd Gas Shock Absorber

• Adjustable Compression: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body Color: Black
• Body Diameter: 2.36 in
• Body Material: Steel
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Gray
• Compressed Length: 10.24 in
• Dust Shield Included: Yes
• Dust Shield Material: Steel
• Extended Length: 14.53 in
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Commercial
• Hydraulic Lockout: Yes
• Includes Bump Stop: No
• Internal Rebound Bumper: No
• Internal Rebound Spring: No

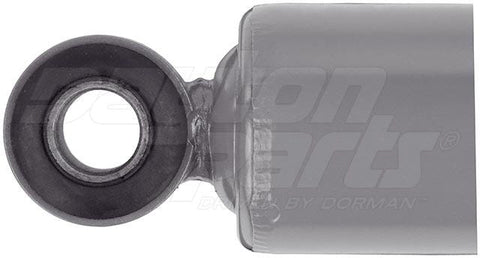

• Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
• Mounting Hardware Included: No
• Package Contents: 1 Shock Absorber
• Packaging Type: Box
• Part Number: 441-85939
• Part Type: Suspension - Shock Absorber
• Remote Reservoir: No
• Reserve Tube Size: 1.57 in
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Shaft Material: Steel
• Shock Absorber Body End Measuring Point: Center Of Loop
• Shock Absorber Rod End Measuring Point: Center Of Loop
• Shock Stroke: 4.29 in
• Strut Mount Insulator(s) Included: No
• Travel Length: 4.29 in
• Type: Telescopic

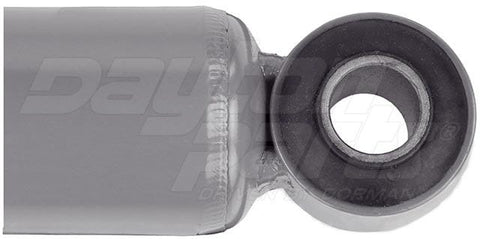

• Upper Mount Type: Loop (Eyelet) Bushing and Sleeve
• Weight: 7.030000

• Part number: 441-85939
• Cross Reference: VMRS : 016003016; HENDRICKSON : 341S23651, 341-S23651, S22312, S-22312, S23651, S-23651; DANA : SR1VJ100; OTHER : 65511, 665760, 680573, 85078, 85939, HD12150046, HD1215-0046, M65511
• Product Class: Suspension - Shock Absorber
