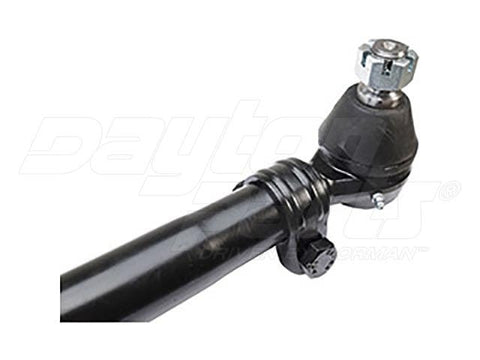

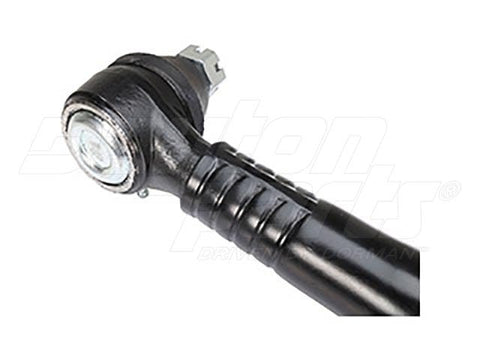

Dayton Parts 346-709 Steering Drag Link

Drag Link

• Adjustable: Yes
• Adjusting Sleeve Included: Yes
• Ball Studs: Same
• Bend Length 1: 7.13 in
• Bends: One Bend
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: One Replaceable End; One Bend, Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Attachment Size: 29 mm
• End 1 Attachment Type: Taper
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.250 in
• End 1 Small Dia.: 1.110 IN
• End 1 Taper Length: 1.100 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Attachment Size: 95 mm
• End 2 Attachment Type: Threaded
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.250 in
• End 2 Small Dia.: 1.110 IN
• End 2 Taper Length: 1.100 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: One Replaceable End
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fitting Included: Yes
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 35.92 in
• Locking Nut Included: No
• Material: Steel
• Maximum Diameter: 44.5 mm
• Mounting Hardware Included: Yes
• OE Application: Volvo
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-709
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS9619
• Shaft Diameter: 1.73 in
• Stud Thread Diameter: 0.875 in
• Thread Size: 7/8-14 in
• Type: Bent
• Weight: 0.010000

• Part number: 346-709
• Cross Reference: VMRS : 015004010; VOLVO : 20354730, 389053819; OTHER : 463DS9619, 463.DS9619, 463DS9646, 463.DS9646, L28VT5452A11
• Product Class: Steering - Drag Link
