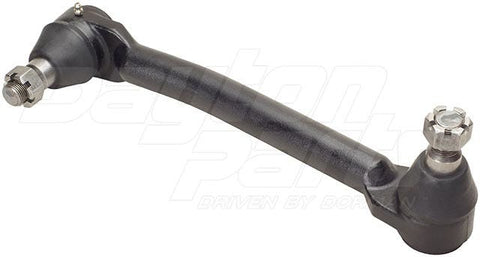

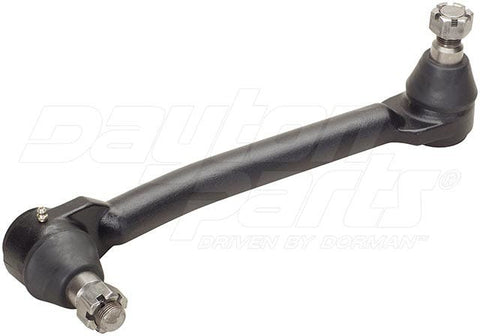

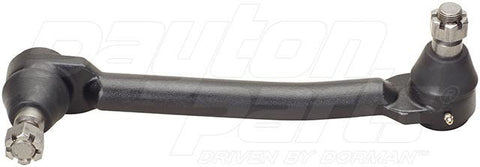

Dayton Parts 346-559 Steering Drag Link

Drag Link Ds55195

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Same

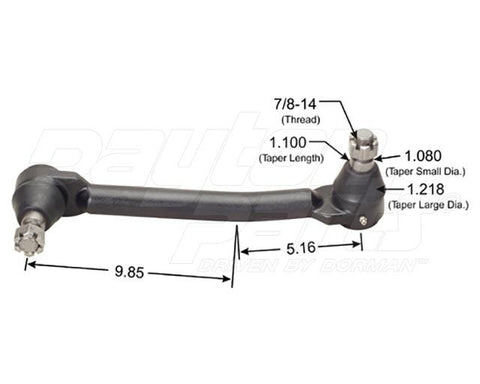

• Bend Length 1: 9.85 in
• Bends: One Bend
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; One Bend; Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.218 in
• End 1 Small Dia.: 1.080 in
• End 1 Taper Length: 1.100 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.218 in
• End 2 Small Dia.: 1.080 in
• End 2 Taper Length: 1.100 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 14.96 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 1
• OE Application: IHC
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-559
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS55195
• Replaceable End: No
• Shaft Diameter: 1.44 in
• Stud Length: 1.100 in
• Stud Thread Diameter 1: 0.875 in
• Stud Thread Diameter 2: 0.875 in
• Weight: 12.000000

• Part number: 346-559
• Cross Reference: VMRS : 015004010; OTHER : 3523195C91, 463DS55195, 463.DS55195, DS55195, L24VU8282A11, L24VU8282A12
• Product Class: Steering - Drag Link
