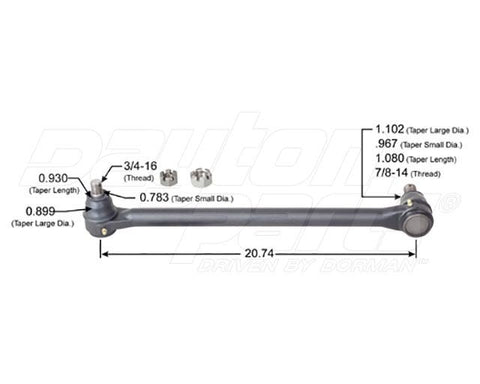

Dayton Parts 346-538 Steering Drag Link

Ds4647 Dtna Drag Link

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Different
• Bends: Straight
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; Straight; Ball Studs Different Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-341662
• End 1 Gender: Male
• End 1 Large Dia: 0.899 In
• End 1 Small Dia.: 0.783 in
• End 1 Taper Length: 0.930 in
• End 1 Thread Diameter: 0.750 in
• End 1 Thread Size: 0.750-16 in
• End 1 Threads Per Inch: 16
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.102 in
• End 2 Small Dia.: 0.967 in
• End 2 Taper Length: 1.080 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 20.74 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 0
• OE Application: Freightliner
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-538
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS4647
• Replaceable End: No
• Shaft Diameter: 1.25 in
• Stud Length: 0.930 in
• Stud Thread Diameter 1: 0.75 in
• Stud Thread Diameter 2: 0.875 in
• Weight: 10.815000

• Part number: 346-538
• Cross Reference: VMRS : 015004010; FREIGHTLINER : 1416056000, 1417547000; OTHER : 463DS4647, 463.DS4647, DS4647, L20VU8154A12, L20VU8154A91
• Product Class: Steering - Drag Link
