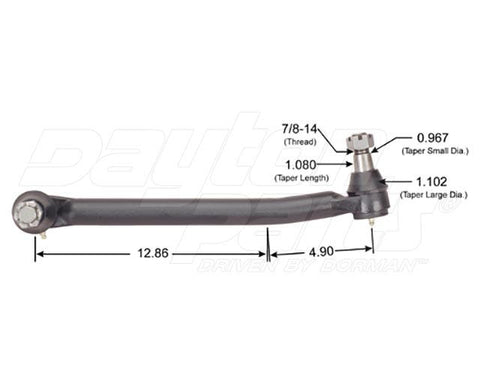

Dayton Parts 346-384 Steering Drag Link

Ds1214 Int Drag Link

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Same
• Bend Length 1: 12.86 in
• Bends: One Bend
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; One Bend; Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.102 in
• End 1 Small Dia.: 0.967 in
• End 1 Taper Length: 1.080 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.102 in
• End 2 Small Dia.: 0.967 in
• End 2 Taper Length: 1.080 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 17.70 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 1
• OE Application: Navistar
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-384
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS1214
• Remarks: Null
• Replaceable End: No
• Shaft Diameter: 1.44 in
• Stud Length: 1.080 in
• Stud Thrd. Size (F): 0.87-14
• Stud Thread Diameter 1: 0.875 in
• Stud Thread Diameter 2: 0.875 in
• Weight: 11.800000

• Part number: 346-384
• Cross Reference: VMRS : 015004010; DANA : 2749194, 274-9194; SPICER : SP749194; OTHER : 1661437C92, 221214, 22-1214, 463DS1214, 463.DS1214, DS1214, DS1214A, E9911, E-9911, FDL1214, FDL1214A, L20VU8001A12, L20VU8001A13, R250112, SA719, S-A719, SDS1214, SDS-1214
• Product Class: Steering - Drag Link
