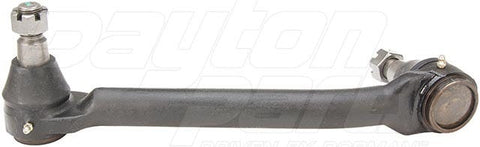

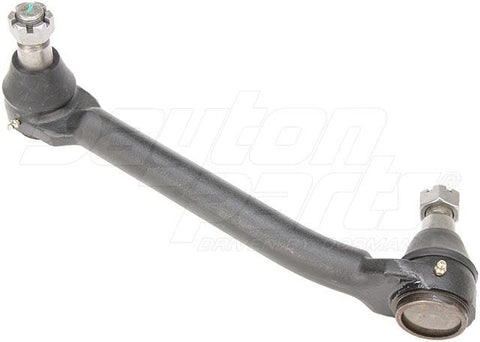

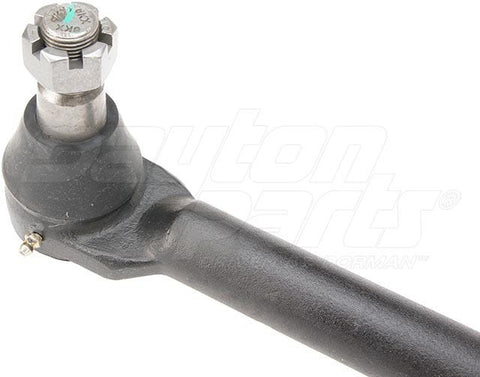

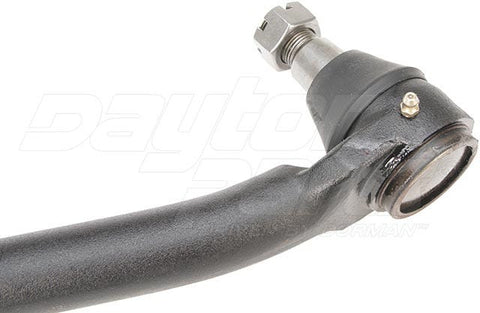

Dayton Parts 346-370 Steering Drag Link

Ds1179 Pet. Drag Link

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Same
• Bend Length 1: 11.52 in
• Bends: One Bend
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; One Bend; Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.250 in
• End 1 Small Dia.: 1.080 in
• End 1 Taper Length: 1.360 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.250 in
• End 2 Small Dia.: 1.080 in
• End 2 Taper Length: 1.360 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 14.86 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 1
• OE Application: Peterbilt
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-370
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS1179
• Remarks: Null
• Replaceable End: No
• Shaft Diameter: 1.44 in
• Stud Length: 1.360 in
• Stud Thrd. Size (F): 0.87-14
• Stud Thread Diameter 1: 0.875 in
• Stud Thread Diameter 2: 0.875 in
• Weight: 12.000000

• Part number: 346-370
• Cross Reference: VMRS : 015004010; PACCAR : 1002131, 10-02131, 1002163, 10-02163, 1002163A, 10-02163A, 1002498, 10-02498; SPICER : 2721652, 272-1652; MERITOR : R250067; OTHER : 463DS1179, 463.DS1179, 500236, 500.236, DS1179, E6818, E-6818, FLD1179, L24VU7050B11, L24VU8000F11, L24VU8000G11, SDS1179, SDS-1179, SE393, S-E393
• Product Class: Steering - Drag Link
