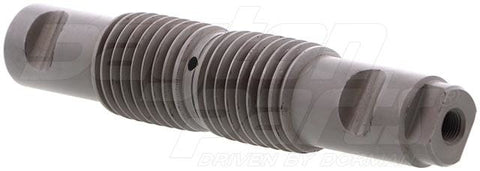

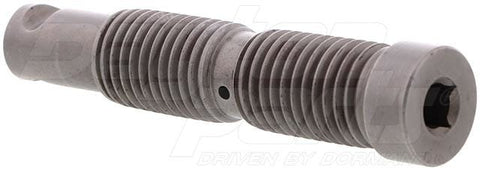

Dayton Parts 327-557 Suspension Threaded Spring Pin

Thrd Spring Pin-Cat

• Diameter A: 1.0625 in
• Diameter B: 1.5 in
• End Threaded: No
• Length: 6.9375 in
• Length - Center of Hole to End: 1/2
• Lock Cut: Tangential Radial Groove; only on small dia
• Lock No: Single
• Lock Type: Cross Bolt
• Number of Mounting Holes: 1
• Overall Length: 6.9375 in
• Package Contents: 2 Spring Pins
• Part Number: 327-557
• Part Type: Suspension - Leaf Spring Pin
• Pin Construction: Threaded
• Pin Head Type: Headed
• Pin Thread Length: 4 7/16 in
• Pin Thread Size: 1 3/8 in - 6
• Pin Threaded: Yes
• Pin Type: 27
• Remarks: Single Lock-Small End
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Spring Pin Diameter1: 1.0625 in
• Spring Pin Diameter2: 1.5 in
• Spring Pin Type: 27.0
• Thread Length: 4 7/16 in
• Thread Size: 1 3/8 in-6
• Weight: 1.000000

• Part number: 327-557
• Cross Reference: VMRS : 016005133; CATERPILLAR : 3861677, 386-1677; OTHER : 3851176C2, B3861677, B-386-1677, M4909
• Product Class: Suspension - Leaf Spring Pin
