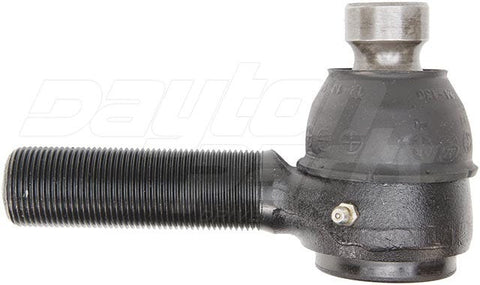

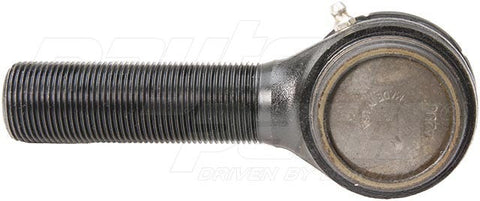

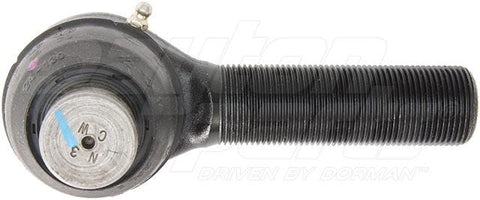

Dayton Parts 310-435 Steering Drag Link End

Es3252r Drag Link End

• Adjustable: No
• Adjusting Sleeve Included: No
• Boot Color: Black
• C to E (A): 5.75
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/4 in
• End 1 Thread Pitch: 1.1/4-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Coated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 4.7 in
• Housing Material: Steel
• Ind. Part No.: Es3252R
• Length: 6.7 in
• Length - Stud Center to End: 5.75 in
• Lg. Dia. (C): 1.25
• Locking Nut Included: Yes
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-435
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Mack Drag Link End. Ball Stud Has No Threads
• Rod Thrd. Size (B): 1.25 In-12
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 1.25
• Stud Length: 33 mm
• Stud Thrd. Size (F): 1 1/4 in
• Stud Type: Threaded
• Tie Rod Material: Steel
• Tie Rod Type Number: 6
• Type: Straight
• Weight: 5.600000
• Width: 4.7 in

• Part number: 310-435
• Cross Reference: VMRS : 011001031; OTHER : 13QC3271P120, 13QC3271P1-20, 13QC3273P13, 13QC3273P20, 18QK201, 18QK204M2, 18QK214, 462ES6252R, 462.ES6252R, 5206786, E12015, E9881, E-9881, ES3252, ES3252R, L24SV8205B13, L24SV8205B15, L24SV8205D13, L24SV8205G12, L24SV8205G13, L24SV8205G91, L24SV8205H12, L28SV5000M12, L28SV5056D12, R230417, S8102, S-8102, SES3252R, SES-3252R
• Product Class: Steering - Tie Rod End
