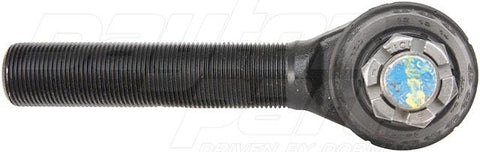

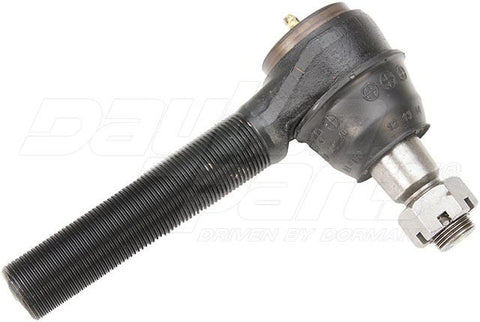

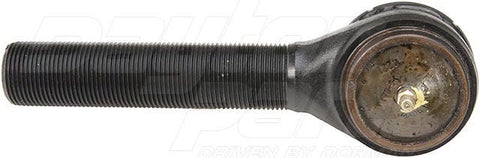

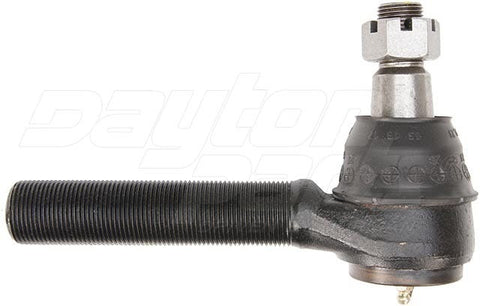

Dayton Parts 310-434 Steering Tie Rod End

Es2091r Tie Rod End

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Joint Included: Yes
• Bolts Included: No
• Boot Color: Black
• C to E (A): 7.37
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Attachment Type: Threaded
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/4 in
• End 1 Thread Direction: Clockwise (Right)
• End 1 Thread Pitch: 1.1/4-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Coated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 5.5 in
• Housing Material: Steel
• Ind. Part No.: Es2091R
• Length: 9 in
• Length - Stud Center to End: 7.37 in
• Lg. Dia. (C): 1.25
• Locking Nut Included: Yes
• Material: Steel
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Outside Diameter: 67 mm
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-434
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Advance, Crown, Gillig, Kenworth, Oshkosh And Thomas Drag Link End; Eaton, Rockwell
• Rod Thrd. Size (B): 1.25 In-12
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 1.08
• Stud Length: 28.5 mm
• Stud Thrd. Size (F): 7/8 in-14
• Stud Type: Threaded
• Taper Len (E): 1.460
• Thread Direction: Clockwise (Right)
• Tie Rod End Thread Diameter: 1.25 in
• Tie Rod Material: Steel
• Tie Rod Type Number: 1
• Type: Straight
• Weight: 5.600000
• Width: 4.3 in

• Part number: 310-434
• Cross Reference: VMRS : 011001031; DAYTON PARTS : 0160048, 016-0048; PACCAR : 798203; OTHER : 10QH248P5, 10QH311, 12011BNW, 12011-BNW, 1663000C91, 212091R, 21-2091R, 212204R, 21-2204R, 212209R, 21-2209R, 370244403, 37024-4403, 462ES2091RS, 462.ES2091RS, 462ES9902R, 462.ES9902R, 486355C91, 500817, 500.817, 506684C91, 5205150, 581063C91, 590584C91, 686355C91, 818471, 820625, 820695, A3144F448, A3144T1138, E12011, E4629, E-4629, ES2091R, ES2204R, ES2209R, ES3144R, FTR2091R, FTR2204R, FTR2204RA, FTR2209R, HES2091R, L24SV8101A21, L24SV8101A23, L24SV8101C15, L24SV8101C22, L24SV8103C12, L24SV8103C16, L24SV8103J91, L24SV8105B12, L24SV8110D12, L28SV5200A12, L28SV5202A11, L28SV5202A16, L28SV5207B11, L28SV5207B16, L28SV5211B23, OTR26291, R230052, R230073, R230129, R230134, S5988, S-5988, SES2091R, SES-2091R, TE2042, TWES2091R
• Product Class: Steering - Tie Rod End
