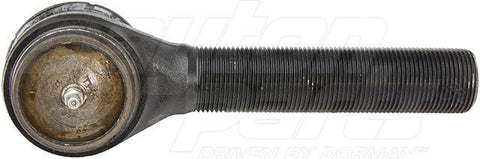

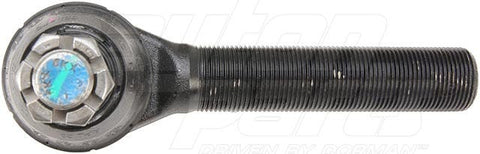

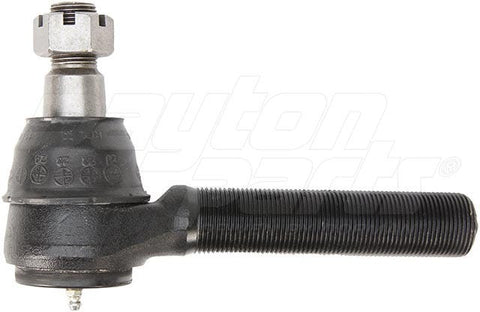

Dayton Parts 310-433 Steering Tie Rod End

Es2090l Tie Rod End

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Joint Included: Yes
• Bolts Included: No
• Boot Color: Black
• C to E (A): 7.37
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Attachment Type: Threaded
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/4 in
• End 1 Thread Direction: Clockwise (Right)
• End 1 Thread Pitch: 1.1/4-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Coated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 5.5 in
• Housing Material: Steel
• Ind. Part No.: Es2090L
• Length: 9 in
• Length - Stud Center to End: 7.37 in
• Lg. Dia. (C): 1.25
• Locking Nut Included: Yes
• Material: Steel
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Outside Diameter: 67 mm
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-433
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Kenworth Drag Link End; Eaton, Rockwell
• Rod Thrd. Size (B): 1.25 In-12 LH
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 1.08
• Stud Length: 28.5 mm
• Stud Thrd. Size (F): 7/8 in-14
• Stud Type: Threaded
• Taper Len (E): 1.460
• Thread Direction: Clockwise (Right)
• Tie Rod End Thread Diameter: 1.25 in
• Tie Rod Material: Steel
• Tie Rod Type Number: 1
• Type: Straight
• Weight: 5.600000
• Width: 4.3 in

• Part number: 310-433
• Cross Reference: VMRS : 011001031; DAYTON PARTS : 016049, 016-049; PACCAR : 798204; OTHER : 10QH248P6, 10QH312, 12012BNW, 12012-BNW, 212090L, 21-2090L, 212210L, 21-2210L, 371903406, 37190-3406, 462ES2090LS, 462.ES2090LS, 486354C91, 500186, 500.186, 590583C91, 818472, 820625, 820626, 820694, A3144G449, A3144S1137, A3144U438, ARE9987, ARE-9987, E12012, E4628, E-4628, E9955, E-9955, ES2090L, ES2210L, FTR2090L, FTR2210L, HES2090L, L24SV8100A13, L24SV8100B13, L24SV8102C12, L24SV8102C13, L24SV8102C15, L24SV8102G91, L24SV8103C13, L24SV8104B14, L28SV5201A12, L28SV5216A14, L28VT5493A11, OTR23281, R230055, R230072, R230130, R230133, S6659, S-6659, SES2090L, SES-2090L, TWES2090L
• Product Class: Steering - Tie Rod End
