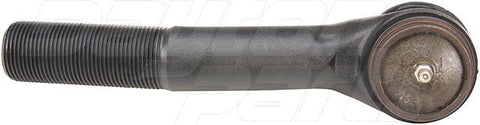

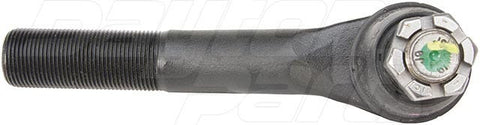

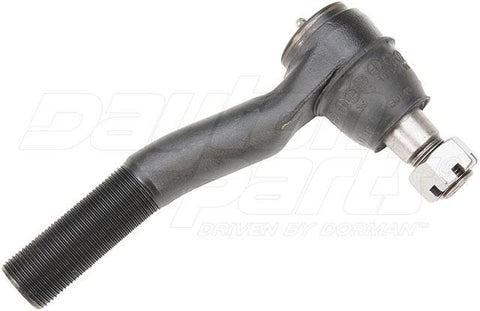

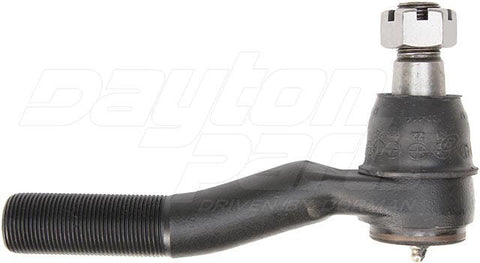

Dayton Parts 310-286 Steering Tie Rod End

Es3297r Tie Rod End

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Joint Included: Yes
• Bolts Included: No
• Boot Color: Black
• C to E (A): 8.11
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Attachment Type: Threaded
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/4 in
• End 1 Thread Direction: Clockwise (Right)
• End 1 Thread Pitch: 1.1/4-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Uncoated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 3 in
• Housing Material: Steel
• Ind. Part No.: Es3297R
• Length: 12.25 in
• Length - Stud Center to End: 8.12 in
• Lg. Dia. (C): 1.102
• Locking Nut Included: Yes
• Material: Steel
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Outside Diameter: 67 mm
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-286
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Eaton
• Rod Thrd. Size (B): 1.25 In-12
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 0.967
• Stud Length: 25.5 mm
• Stud Thrd. Size (F): 7/8 in-14
• Stud Type: Threaded
• Taper Len (E): 1.080
• Thread Direction: Clockwise (Right)
• Tie Rod End Thread Diameter: 1.25 in
• Tie Rod Material: Steel
• Tie Rod Type Number: 2
• Type: Straight
• Weight: 5.500000
• Width: 4.78 in

• Part number: 310-286
• Cross Reference: VMRS : 011001031; EATON : 1009010, TE2048; VOLVO : 1117995; MERITOR : E8758, R230132, R230420; OTHER : 219009R, 21-9009R, 463ES3297R, 463.ES3297R, 64004002, 64004-002, ARE9902, ARE-9902, E11981, E-8758, ES3297R, HES9010, L20LV8042A13, L20LV8042A14, L20LV8042B91, M4283, M-4283, R-230420, S8999, S-8999, S9000, S-9000, SES3297R, SES-3297R, TWES9010
• Product Class: Steering - Tie Rod End
