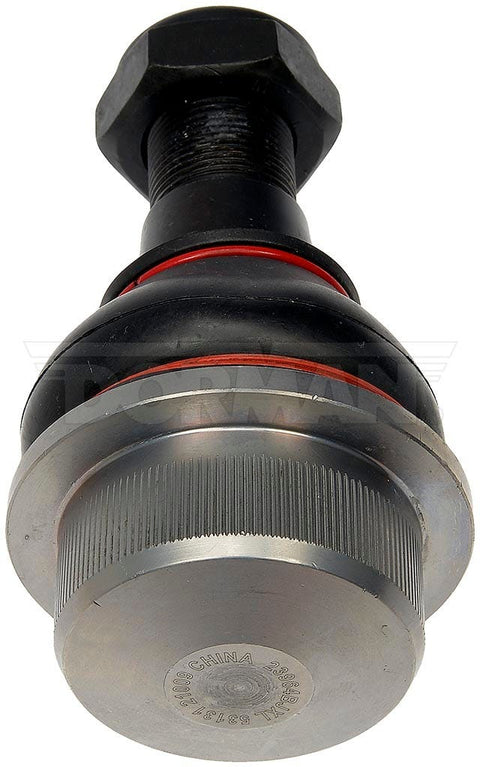

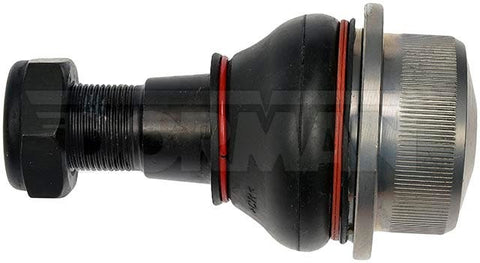

Dayton Parts 539-976 Suspension Ball Joint

Ball Joint

• Adjustable: No
• Attachment Type: Taper
• Ball Joint Assembly: Yes
• Ball Joint Installed: Yes
• Bearing Material: Polymer
• Bolts/Studs Included: Yes
• Bushing Included: No
• Bushing Quantity: 0
• Bushings Included: No
• Castle Nut Included: Yes
• Color: Gray
• Cotter Pin Hole: Yes
• Cotter Pin Included: Yes
• Distance Between Mounting Holes: 28 mm; 30 mm; 44.68 mm
• Dust Boot Included: Yes
• Dust Boot Material: Polychloroprene
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 85.03 mm
• Housing Press Fit Diameter: 45 mm
• Length: 111 mm
• Material: Steel
• Maximum Outside Diameter: 56.06 mm
• Mfr Brand Name: Dorman - OE Solutions
• Mount Plate Included: Yes
• Mounting Bolt Head Diameter: 11.7 mm
• Mounting Bolt Length: 25.4 mm
• Mounting Bolt Thread Diameter: 5/16 in
• Mounting Bolt Thread Length: 25.4 mm
• Mounting Bolt Thread Pitch: M24
• Mounting Bolts Included: Yes
• Mounting Hardware Included: Yes
• Mounting Hole Quantity: 0
• Mounting Type: Bolt-In
• Nuts Included: Yes
• Package Contents: 1 Ball Joint; 1 Zerk Fitting; 1 Castle Nut; 1 Cotter Pin; 6 Bolts; 6 Nuts
• Packaging Type: Box
• Part Number: 539-976
• Part Type: Suspension - Ball Joint
• Stud Taper Per Foot: 1.59 in
• Stud Tapered End 1 Diameter: 17.95 mm
• Stud Tapered End 2 Diameter: 21.4 mm
• Stud Thread Diameter: 1/2 in
• Stud Thread Length: 23 mm
• Stud Thread Pitch: 1.5 mm
• Stud Type: Tapered
• Suspension Grade Type: Standard
• Tapered Stud: Yes
• Thread Pitch: 1.5 mm
• Type: Bolt On
• WarrantyCode: Limited Lifetime
• Washer(s) Included: No
• Weight: 1.300000
• Width: 59 mm
• Wrench Size: 21 mm

Application Summary : Dodge Ram 4500 2010-08, Dodge Ram 5500 2010-08, Ram 4500 2024-11, Ram 5500 2024-11

• Part number: 539-976
• Cross Reference: VMRS : 016001015; CHRYSLER : 68034497AA, 68456973AA; OTHER : K500176, K500176T005, MS25520, TC5893, TXMS25520
• Product Class: Suspension - Ball Joint
