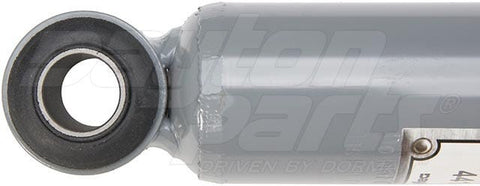

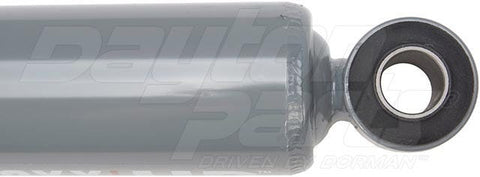

Dayton Parts 441-83396 Suspension - Shock Absorber

Shock Absorber

• Active or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body Color: Black
• Body Diameter: 2 in
• Body Material: Steel
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Gray
• Compressed Length: 14.1 in
• Dust Shield Included: Yes
• Dust Shield Material: Steel
• Extended Length: 20.87 in
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Commercial
• Hydraulic Lockout: Yes
• Includes Bump Stop: No
• Internal Rebound Bumper: No
• Internal Rebound Spring: No
• Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
• Mounting Hardware Included: No
• Package Contents: 1 Shock Absorber
• Packaging Type: Box
• Part Number: 441-83396
• Part Type: Suspension - Shock Absorber
• Remote Reservoir: No
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Shaft Material: Steel
• Shock Absorber Body End Measuring Point: Center Of Loop
• Shock Absorber Rod End Measuring Point: Center Of Loop
• Shock Stroke: 6.77 in
• Strut Mount Insulator(s) Included: No
• Travel Length: 6.85 in
• Type: Telescopic
• Upper Mount Type: Loop (Eyelet) Bushing and Sleeve
• Weight: 6.850000

• Part number: 441-83396
• Cross Reference: VMRS : 016003016; FREIGHTLINER : 1014193000, 10-14193-000, 1014282000, 10-14282-000, 1014317000, 10-14317-000; OTHER : 66458, 83396, A83396, HD12140845, HD1214-0845, M66458
• Product Class: Suspension - Shock Absorber
