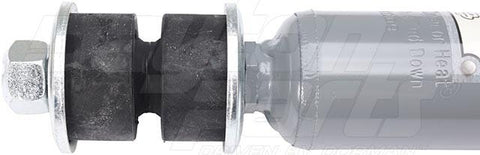

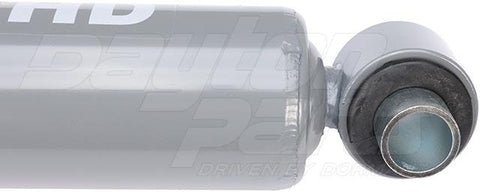

Dayton Parts 441-8312066692 Suspension - Shock Absorber

Shock Absorber

• Active or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body Color: Black
• Body Diameter: 2 in
• Body Material: Steel
• Boot Included: No
• Coil Spring Insulator(s) Included: No
• Color: Gray
• Compressed Length: 13.78 in
• Dust Shield Included: Yes
• Dust Shield Material: Steel
• Extended Length: 22.52 in
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Commercial
• Hydraulic Lockout: Yes
• Includes Bump Stop: No
• Internal Rebound Bumper: No
• Internal Rebound Spring: No
• Lower Mount Type: Stem
• Mounting Hardware Included: No
• Package Contents: 1 Shock Absorber
• Packaging Type: Box
• Part Number: 441-8312066692
• Part Type: Suspension - Shock Absorber
• Remote Reservoir: No
• Reserve Tube Size: 1.42 in
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Shaft Material: Steel
• Shock Absorber Body End Measuring Point: Base Of Stem
• Shock Absorber Rod End Measuring Point: Base Of Stem
• Shock Stroke: 8.74 in
• Strut Mount Insulator(s) Included: No
• Travel Length: 8.875 in
• Type: Telescopic
• Upper Mount Type: Loop (Eyelet) Bushing and Sleeve
• Weight: 7.750000

• Part number: 441-8312066692
• Cross Reference: VMRS : 016003016; FREIGHTLINER : 1615394000, 1615705000, 1615805000, 1615934000, 1616262000, 6803260000, GBL654725, GBL654726, GBL654727, GBL654728, GBL654729, GBL654730, GBL654731, GBL654732, GBL654733, GBL654734, GBL654735, P117099; VOLVO : 3919575; STERLING : 6803260000; THOMAS BUILT BUSES : GBL654725; OTHER : 315397, 316832, 66692, AMS600175, AMS660175, M66692
• Product Class: Suspension - Shock Absorber
