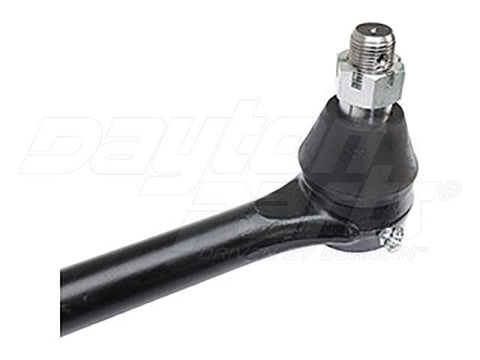

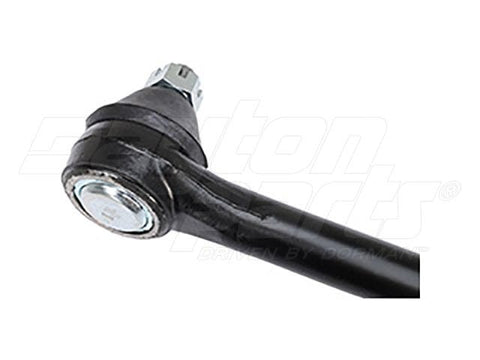

Dayton Parts 346-722 Steering Drag Link

Drag Link

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Different
• Bends: Straight
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; Straight; Ball Studs Different Each End
• Dust Boot Included: Yes
• End 1 Attachment Size: 30 mm; 34 mm
• End 1 Attachment Type: Taper
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.106 in
• End 1 Small Dia.: 0.969 in
• End 1 Taper Length: 1.100 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Attachment Size: 30 mm; 34 mm
• End 2 Attachment Type: Taper
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.250 in
• End 2 Small Dia.: 1.080 in
• End 2 Taper Length: 1.420 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fitting Included: Yes
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 16.26 in
• Locking Nut Included: No
• Material: Steel
• Maximum Diameter: 32 mm
• Mounting Hardware Included: Yes
• OE Application: Freightliner
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-722
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS4657
• Shaft Diameter: 1.25 in
• Stud Thread Diameter: 0.875 in; 0.875 in
• Thread Size: 7/8-14 in
• Type: Straight
• Weight: 13.000000

• Part number: 346-722
• Cross Reference: VMRS : 015004010; DAIMLER : 1417306000, 14-17306-000; OTHER : 463DS4657, 463.DS4657
• Product Class: Steering - Drag Link
