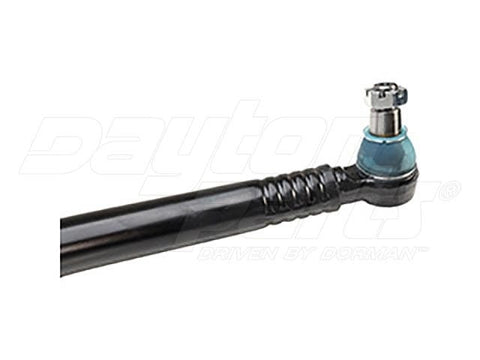

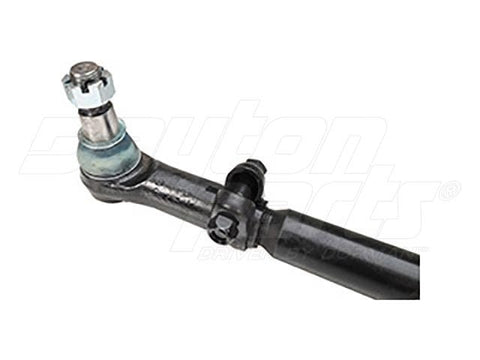

Dayton Parts 346-716 Steering Drag Link

Drag Link

• Adjustable: Yes
• Adjusting Sleeve Included: Yes
• Ball Studs: Different
• Bend Length 1: 10.73 in
• Bend Length 2: 10.59 in
• Bends: Two Bends
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: One Replaceable End; Two Bends; Ball Studs Different Each End
• Dust Boot Included: Yes
• End 1 Attachment Size: 20 mm; 35.5 mm
• End 1 Attachment Type: Taper
• End 1 Castle Nut: 346-M201571
• End 1 Gender: Male
• End 1 Large Dia: 1.080 in
• End 1 Small Dia.: 0.945 in
• End 1 Taper Length: 1.130 in
• End 1 Thread Diameter: M20 metric
• End 1 Thread Size: M20-1.5
• End 1 Threads Per Inch: 1.5 mm
• End 2 Attachment Size: 95 mm
• End 2 Attachment Type: Threaded
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.250 in
• End 2 Small Dia.: 1.100 in
• End 2 Taper Length: 1.120 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: One Replaceable End
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fitting Included: Yes
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 36.94 in
• Locking Nut Included: No
• Material: Steel
• Maximum Diameter: 40 mm
• Mounting Hardware Included: Yes
• OE Application: El Dorado Bus
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-716
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS9401
• Shaft Diameter: 1.57 in
• Stud Thread Diameter: M20-7/8
• Thread Size: 7/8-14 in
• Type: Bent
• Weight: 23.270000

• Part number: 346-716
• Cross Reference: VMRS : 015004010; GENERAL MOTORS : 13614001; OTHER : 463DS9041, 463.DS9041
• Product Class: Steering - Drag Link
