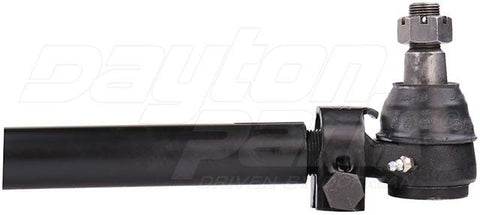

Dayton Parts 346-651 Steering Drag Link

Drag Link 10-02209

• Adjustable: Yes
• Adjusting Sleeve Included: Yes
• Ball Studs: Same
• Bends: Straight
• Boot Color: Black
• Boot Material: Rubber
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: One Replaceable End; Straight; Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-781475
• End 1 Gender: Male
• End 1 Large Dia: 1.250 in
• End 1 Small Dia.: 1.080 in
• End 1 Taper Length: 1.360 in
• End 1 Thread Diameter: 0.875 in
• End 1 Thread Size: 0.875-14 in
• End 1 Threads Per Inch: 14
• End 2 Castle Nut: 346-781475
• End 2 Gender: Male
• End 2 Large Dia: 1.250 in
• End 2 Small Dia.: 1.080 in
• End 2 Taper Length: 1.360 in
• End 2 Thread Diameter: 0.875 in
• End 2 Thread Size: 0.875-14 in
• End 2 Threads Per Inch: 14
• Ends: One Replaceable End
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 35.00 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 0
• Number Of Replaceable Ends: 1
• OE Application: Paccar
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-651
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS7509
• Replaceable End: Yes
• Shaft Diameter: 1.62 in
• Stud Length: 2.150 in
• Stud Thread Diameter 1: 0.875 in
• Stud Thread Diameter 2: 0.875 in
• Weight: 18.500000

• Part number: 346-651
• Cross Reference: VMRS : 015004010; PACCAR : 1002209; OTHER : 10-02209, 463DS7509, 463.DS7509, DS7509, L24VT8505A11, L24VT8505A12
• Product Class: Steering - Drag Link
