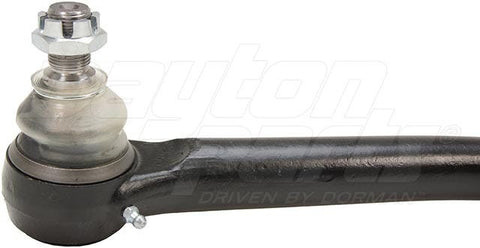

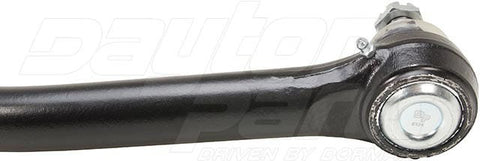

Dayton Parts 346-579 Steering Drag Link

Drag Link Ds6260

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Studs: Same

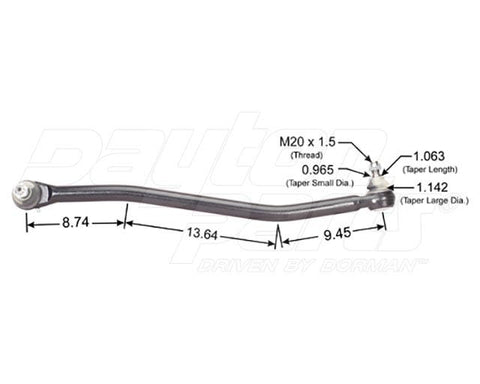

• Bend Length 1: 8.74 in
• Bend Length 2: 13.64 in
• Bends: Two Bends
• Boot Color: Clear
• Boot Material: Urethane
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Drag Link Type: Non-Replaceable Ends; Two Bends; Ball Studs Same Each End
• Dust Boot Included: Yes
• End 1 Castle Nut: 346-M201571
• End 1 Gender: Male
• End 1 Large Dia: 1.142 in
• End 1 Small Dia.: 0.965 in
• End 1 Taper Length: 1.063 in
• End 1 Thread Diameter: M20 metric
• End 1 Thread Size: M20-1.5
• End 1 Threads Per Inch: 1.5 mm
• End 2 Castle Nut: 346-M201571
• End 2 Gender: Male
• End 2 Large Dia: 1.142 in
• End 2 Small Dia.: 0.965 in
• End 2 Taper Length: 1.063 in
• End 2 Thread Diameter: M20 metric
• End 2 Thread Size: M20-1.5
• End 2 Threads Per Inch: 1.5 mm
• Ends: Non-Replaceable Ends
• Finish: Zinc Clear
• Grade Type: Standard
• Grease Fittings Included: Yes
• Greaseable: Yes
• Length: 31.57 in
• Locking Nut Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Number of Bends: 2
• OE Application: Mack
• Package Contents: 1 Drag Link, Cotter Pins, and Castle Nuts
• Part Number: 346-579
• Part Type: Steering - Drag Link
• Pre-Greased: Yes
• Reference Number: DS6260
• Replaceable End: No
• Shaft Diameter: 1.50 in
• Stud Length: 1.063 in
• Stud Thread Diameter 1: M20
• Stud Thread Diameter 2: M20
• Weight: 20.200000

• Part number: 346-579
• Cross Reference: VMRS : 015004010; OTHER : 13QC530M3, 20966804, 463DS6260, 463.DS6260, DS6260
• Product Class: Steering - Drag Link
