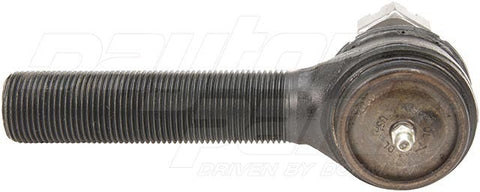

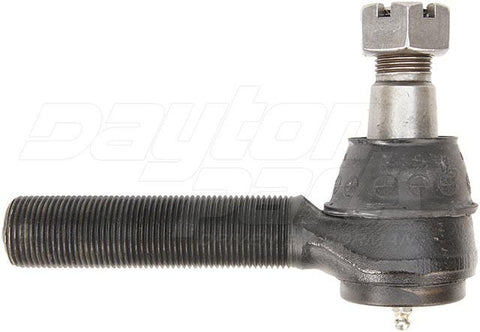

Dayton Parts 310-456 Steering Tie Rod End

Es3477 Tie Rod End

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Joint Included: Yes
• Bolts Included: No
• Boot Color: Black
• C to E (A): 6.00
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Attachment Type: Threaded
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/8 in
• End 1 Thread Direction: Clockwise (Right)
• End 1 Thread Pitch: 1.1/8-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Coated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 4.7 in
• Housing Material: Steel
• Ind. Part No.: Es3477
• Length: 6.7 in
• Length - Stud Center to End: 6 in
• Lg. Dia. (C): 1.107
• Locking Nut Included: Yes
• Material: Steel
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Outside Diameter: 57.4 mm
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-456
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Eaton 3.38 in Rod Center To Stud End
• Rod Thrd. Size (B): 1.12 In-12 LH
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 0.967
• Stud Length: 24.5 mm
• Stud Thrd. Size (F): 7/8 in-14
• Stud Type: Threaded
• Taper Len (E): 1.120
• Thread Direction: Clockwise (Right)
• Tie Rod End Thread Diameter: 1.12 in
• Tie Rod Material: Steel
• Tie Rod Type Number: 1
• Type: Straight
• Weight: 4.000000
• Width: 4.7 in

• Part number: 310-456
• Cross Reference: VMRS : 011001031; SPICER : 685365; PACCAR : E11988, E-11988; OTHER : 41020BLW, 41020-BLW, 462ES9001L, 462.ES9001L, 500756, 500.756, 685366, 817018, 970701, ARE9893, ARE-9893, E10138, E-10138, ES3477, ES9001L, FTR3477, L20SV8151A13, L20SV8151B16, L20SV8151B91, OTR201381, P11988, P-11988, P11988BLW, P-11988-BLW, R230140, SE394, S-E394, SES9001L, SES-9001L
• Product Class: Steering - Tie Rod End
