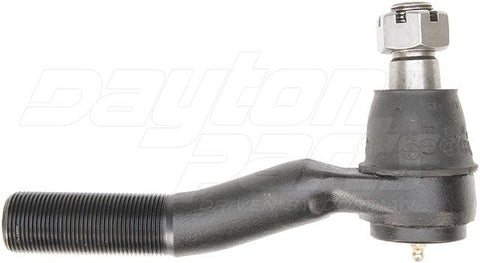

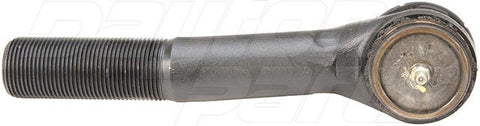

Dayton Parts 310-285 Steering Tie Rod End

Es3298l Tie Rod End

• Adjustable: No
• Adjusting Sleeve Included: No
• Ball Joint Included: Yes
• Bolts Included: No
• Boot Color: Black
• C to E (A): 8.11
• Castle Nut Included: Yes
• Color: Black
• Cotter Pin Included: Yes
• Dust Boot Included: Yes
• Dust Boot Material: Natural Rubber
• End 1 Attachment Type: Threaded
• End 1 Gender: Male
• End 1 Thread Diameter: 1.1/4 in
• End 1 Thread Direction: Counter Clockwise (Left)
• End 1 Thread Pitch: 1.1/4-12 UNF
• End 1 Threads Per Inch: 12.0
• Finish: Uncoated
• Grade Type: Regular
• Grease Fitting Included: Yes
• Greaseable: Yes
• Height: 3 in
• Housing Material: Steel
• Ind. Part No.: Es3298L
• Length: 11.5 in
• Length - Stud Center to End: 8.12 in
• Lg. Dia. (C): 1.102
• Locking Nut Included: Yes
• Material: Steel
• Mfr Brand Name: Dayton HD
• Mounting Hardware Included: Yes
• Package Contents: 1 Tie Rod End. 1 Nut
• Packaging Type: Box
• Part Number: 310-285
• Part Type: Steering - Tie Rod End
• Pre-Greased: Yes
• Remarks: Eaton
• Rod Thrd. Size (B): 1.25 In-12 LH
• Selling Package Quantity: 1
• Selling Package Quantity UOM: EA
• Sm. Dia. (D): 0.967
• Stud Length: 29 mm
• Stud Thrd. Size (F): 7/8 in-14
• Stud Type: Threaded
• Taper Len (E): 1.080
• Thread Direction: Counter Clockwise (Left)
• Tie Rod End Thread Diameter: 1.25 in
• Tie Rod Material: Steel
• Tie Rod Type Number: 2
• Type: Bent
• Weight: 5.500000
• Width: 6.75 in

• Part number: 310-285
• Cross Reference: VMRS : 011001031; EATON : 1009009, TE2047; VOLVO : 1117994; MERITOR : E11982, E8757, R230131, R230421; OTHER : 219010L, 21-9010L, 463ES3298L, 463.ES3298L, 64004001, 64004-001, ARE9909, ARE-9909, E-8757, ES3298L, HES9009, L20LV8041A13, L20LV8041A14, L20LV8041B91, R-230421, S8999, S-8999, S9000, S-9000, SES3298L, SES-3298L, TWES9009
• Product Class: Steering - Tie Rod End
