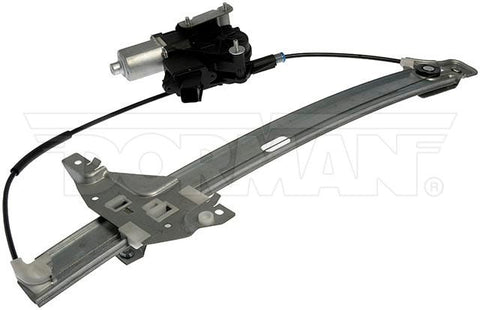

Dayton Parts 751-710 Power Window Regulator And Motor Assembly

Window Regulator

• Anti-Pinch Motor: Yes
• Attachment Type: Bolt
• Belt Included: No
• Belt Length: 0 in
• Belt Tooth Quantity: 0
• Cable Regulator: Yes
• Electric/Manual: Electric
• Express Up Or Down: Express Up and Down
• FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes
• Frame Material: Steel
• Gear Tooth Quantity: 0
• Glass Type: Safety
• Hardwired or Plug In: Plug-In
• Housing Material: Plastic
• Installation Instructions Included: No
• Material: Steel; Plastic
• Maximum Lift Height: 556 mm
• Maximum Width: 29 in
• Micro-Controlled (Embedded Logic): Yes
• Motor Included: Yes
• Motor Outside Diameter: 31 mm
• Motor Power Rating: 18 W
• Mounting Hardware Included: No
• Mounting Hole Quantity: 5
• Mounting Position: Front Left
• Operation Type: One-Touch (Open And Close)
• Package Contents: 1 Power Window Motor and Regulator Assembly
• Packaging Type: Box
• Part Number: 751-710
• Part Type: Window Regulator and Lift Motor Assembly
• Selling Package Quantity: 1
• Terminal Quantity: M6 -1.0
• Weight: 5.071000
• Window Operation Type: Automatic (Down)
• Wire Quantity: 0
• Wiring Harness Included: No
• Wiring Harness Length: 0 in

Application Summary : Ford F-250 Super Duty 2016-13, Ford F-350 2016-13, Ford F-350 Super Duty 2016-13, Ford F-450 Super Duty 2016-13, Ford F-550 Super Duty 2016-13

• Part number: 751-710
• Cross Reference: VMRS : 002020004; FORD MOTOR COMPANY : CC3Z2523201B, CC3Z2523201D, CC3Z2523201E; OTHER : 212003, 21-2003
• Product Class: Window Regulator and Lift Motor Assembly
