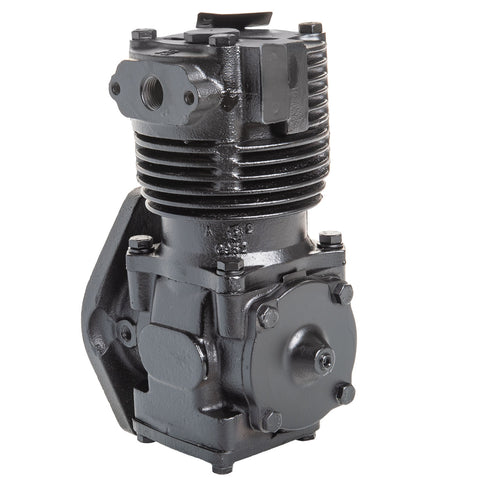

Haldex KNT85230X El850 Compressor, Remanufactured

Remanufactured EL850 2-Hole Flange/Taper Shaft
Head Rotatable
Flange Mount, Gear Drive
Side Oil Feed, Thru-Drive Available
Front-Threaded Discharge Type
Base Oil Drain
Tapered Shaft
Overall Height: 11.44 in.
Overall Width: 4.76 in.
Overall Length: 8.86 in.
External Shaft Length: 2.22 in.
Approximate Weight: 31 lbs.
Notes
Orientation viewed from front.
Installation Instructions For Cummins B&C Series Thru-Drive Conversion - L31078. Installation Instructions For Cummins B Series - L31105.
Svc/Repair Instructions For Cylinder Head - L31059.
Service Units are furnished without governors and manifolds and may require head rotation before installation or changeover.
Thru-drive units must not exceed 65 ft. of transmitted torque.
Service Units require the purchase of thru-drive kit SN3072BW for thru-drive applications.
Typical - Torque Nut to 80-100 ft. lbs.
Include installation gaskets.

• Intake Manifold Position: Right
• Application: Cummins Type B-Engines
• Notes: Turbocharged , Air Cooled
• OEM Part Number: NT7523 Exact Replacement
• Core Group: 850
• Overall Height: 11.44 in.
• Overall Width: 4.76 in.
• Overall Length: 8.86 in.
• External Shaft Length: 2.22 in.
• Bore Diameter: 3.15 in.
• Stroke: 1.50 in.
• Turbo-Charge Pressure: 25 Max PSI
• Rated Displacement: 8.5 CFM @ 1250 RPM
• Approximate Weight: 31 lbs.

Part number: KNT85230X
