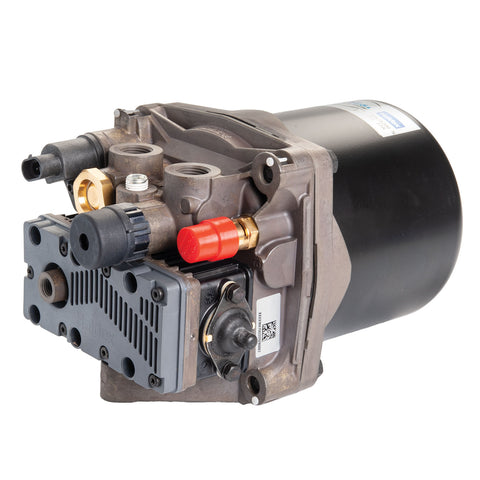

Haldex DA35200 Air Dryer

DRYest„¢ Air Dryer
Extended Service Air Dryer for System Purge Application.
Multi-Treatment Cartridge employs 5 stages of cleaning to ensure dry system air.
Integrated turbo protection.
Built-in heater prevents freezing and damage to the dryer.
Extra compact size allows for easy installation anywhere.
Integrated governor option increases dryers performance and reduces application costs.
Integrated muffler allows for superior quiet operation.
Notes
Fits in 12" x 6-3/4" x 6-3/4" Envelope. This includes 1/2" clearance needed for desiccant cartridge change.

• Heater: 12 Volt
• System Regeneration: Yes
• Integrated Governor: Yes
• OEM Part Number: N4261
• Stages of Drying: 5
• Inlet Temperature: -40°F to 170°F
• Maximum Working Pressure: 150 psi
• Safety Relief Pressure: 160 psi
• Heater Watt Specification: 90W
• Drying Capacity: 5.8 SCF
• Desiccant Cartridge: 3.5 lbs.
• Assembly Weight: 13.5 lbs.
• Governor Cut-Out: 125 ± 5 psi
• Maximum Inlet Airflow: 35 SCFM
• Pressure Drop: 2.5 psi at 15 SCFM/120 psi
• Regeneration Valve System Purge Drain: Silencer
• Turbo Protection: 35 psi Inlet Required

Part number: DA35200
