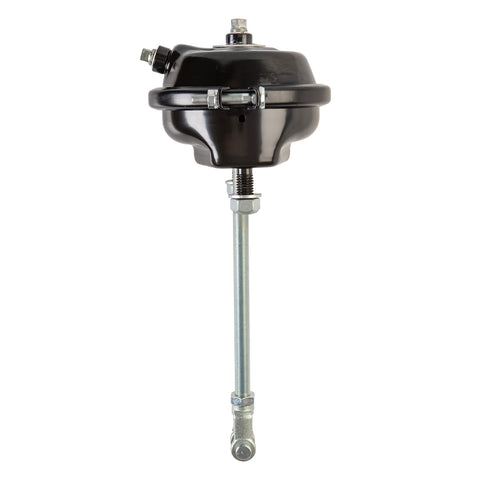

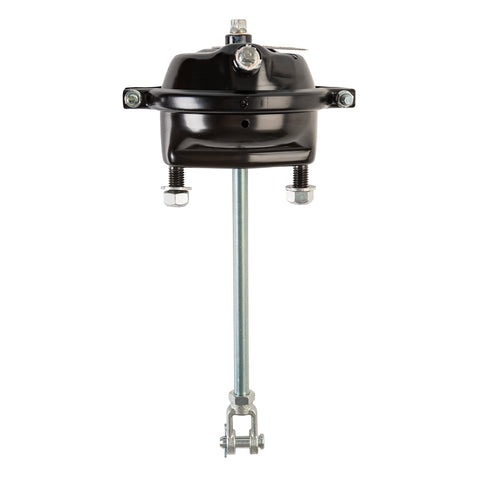

Haldex SC20L Service Chamber Brake

Service Chamber - Long Stroke - Size T20
Steel Pressure Housing; Powder coated with resistance welded air ports
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
Orange Alert® Stroke Indicator
Self-piloting Dust Shield
Air Port Threads 3/8-18 NPTF
Maximum Air Pressure: 150 psi
Notes
A = Length from mounting bracket to end of Spring Housing
D = Dimension at Service Clampband
E = Stud Spacing: 4.75" (120.7mm) with 5/8-11 UNC studs
J = Pushrod Length from face of Service Housing: 5/8-18 UNF pushrod threads
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)

• Actuator Type Size: 20
• Stroke Type: Long
• Available Stroke: 2.50", 64mm
• A: 4.2", 107mm
• D: Dimension at Service Clampband
  8.6"
  218mm
• E: 4.75", 120.7mm
• J: 10.00"
• K: Distance to Clevis Pin centerline from face of Service Housing
• T: 90°
• S1: 0°
• Weight: 7.5 lbs. , 3.4 kg.
• Quantity: 1

Part number: SC20L
